Caution / Notice / Hint

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the front door belt moulding assembly LH removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedures	Necessary Procedures	Effect/Inoperative Function when Necessary Procedures are not Performed	Link
Front door glass sub- assembly LH Front door glass sub- assembly RH Front door glass run LH Front door glass run RH	Initialize power window control system	Auto up and down function Jam protection function Catch protection function Remote control function Key-linked function Wireless transmitter-linked function Key-off operation function Window open warning function	Refer to INITIALIZATION [12/2021 - ]

HINT:

When the cable is disconnected/reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function when Necessary Procedures are not Performed	Necessary Procedures	Link
Stop and start system*	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	Refer to PRECAUTION [12/2021 - 10/2023] , or refer to PRECAUTION [10/2023 - ]
Lighting system (EXT) Cornering lights	Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.	Refer to INITIALIZATION [12/2021 - ]
Pre-collision system
Lane tracing assist system
Adaptive high beam system

*: w/ Stop and start system

Learning completes when vehicle is operated normally

Effect/Inoperative Function when Necessary Procedures are not Performed	Necessary Procedures	Link
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	Refer to INITIALIZATION [12/2021 - ]
Air conditioning system	After the ignition switch is turned to ON, the servo motor and expansion valve standard position is recognized.	-

Use the same procedure for the RH and LH sides.
Use the same procedure described for the LH side.

COMPONENTS (REMOVAL)

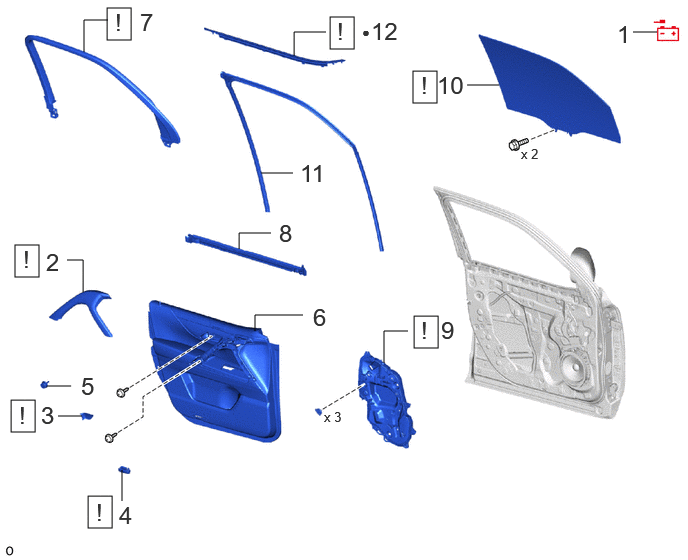

Fig 1: Front Door Belt Moulding Removal Components

Procedure		Part Name Code
1	DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL	-	-	-	-
2	DOOR ASSIST GRIP COVER LH	74646	See step 2	-	-
3	FRONT DOOR INSIDE HANDLE BEZEL LH	69278B	See step 3	-	-
4	COURTESY LIGHT ASSEMBLY	81230	See step 4	-	-
5	NO. 1 FRONT DOOR STIFFENER CUSHION	67923E	-	-	-
6	FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH	67602	-	-	-
7	DOOR FRAME GARNISH LH	67664C	See step 7	-	-
8	FRONT DOOR GLASS INNER WEATHERSTRIP LH	68172A	-	-	-
9	FRONT DOOR SERVICE HOLE COVER LH	67832	See step 9	-	-
10	FRONT DOOR GLASS SUB-ASSEMBLY LH	68102	See step 10	-	-
11	FRONT DOOR GLASS RUN LH	68151E	-	-	-
12	FRONT DOOR BELT MOULDING ASSEMBLY LH	75720	See step 12	-	-

•

Non-reusable part
