Caution / Notice / Hint

COMPONENTS (REMOVAL)

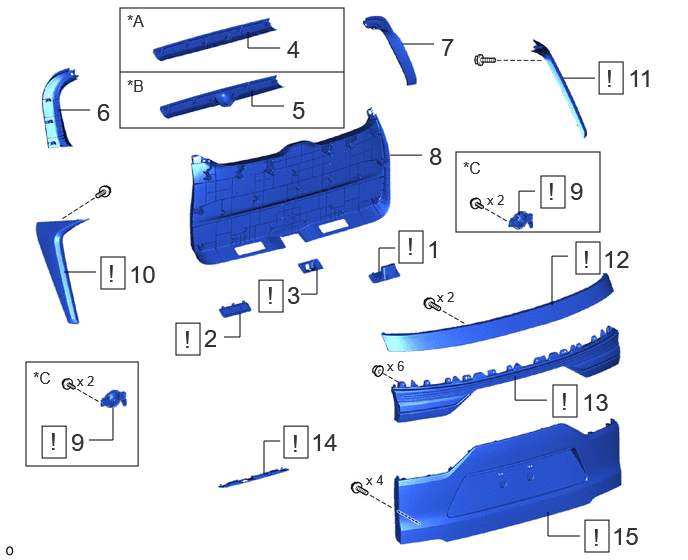

Fig 1: Back Door Outside Garnish Removal Components
GTY1057730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
1 DOOR PULL HANDLE 74811G See step  1 - -
2 BACK DOOR TRIM BASE 64785A See step  2 - -
3 BACK DOOR LOCK COVER 69321 See step  3 - -
4 BACK DOOR CENTER GARNISH 67939B - - -
5 BACK DOOR CENTER GARNISH WITH NO. 2 BACK DOOR SERVICE HOLE COVER - - - -
6 BACK DOOR SIDE GARNISH LH 67938A - - -
7 BACK DOOR SIDE GARNISH RH 67937B - - -
8 BACK DOOR TRIM PANEL ASSEMBLY 64780A - - -
9 REAR NO. 3 SPEAKER ASSEMBLY WITH BRACKET - See step  9 - -
10 REAR SPOILER SIDE PROTECTOR SUB-ASSEMBLY LH 76808 See step  10 - -
11 REAR SPOILER SIDE PROTECTOR SUB-ASSEMBLY RH 76807 See step  10 - -
12 BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY 76801 See step  12 - -
13 REAR LIGHT ASSEMBLY 81580A See step  13 - -
14 LOWER BACK DOOR OUTSIDE GARNISH 76812 See step  14 - -
15 LOWER BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY 76802E See step  15 - -
*A w/o Digital Inner Mirror *B w/ Digital Inner Mirror
*C w/ Back Door Speaker - -
