Meter / Gauge System
>>
DTC B1508-19: Turn Signal/Hazard Flasher Circuit Current Above Threshold [12/2021 - 10/2023]
>>

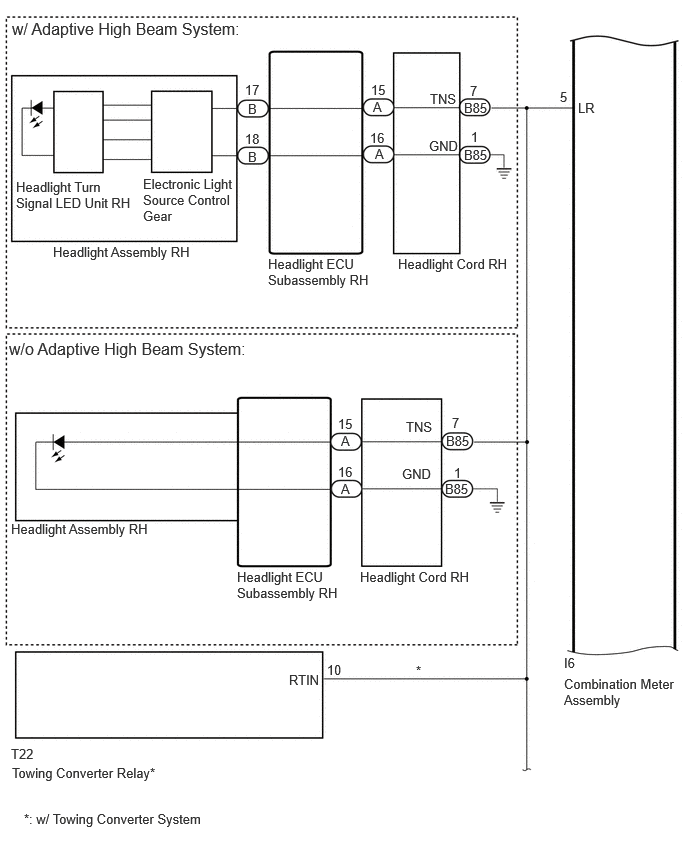

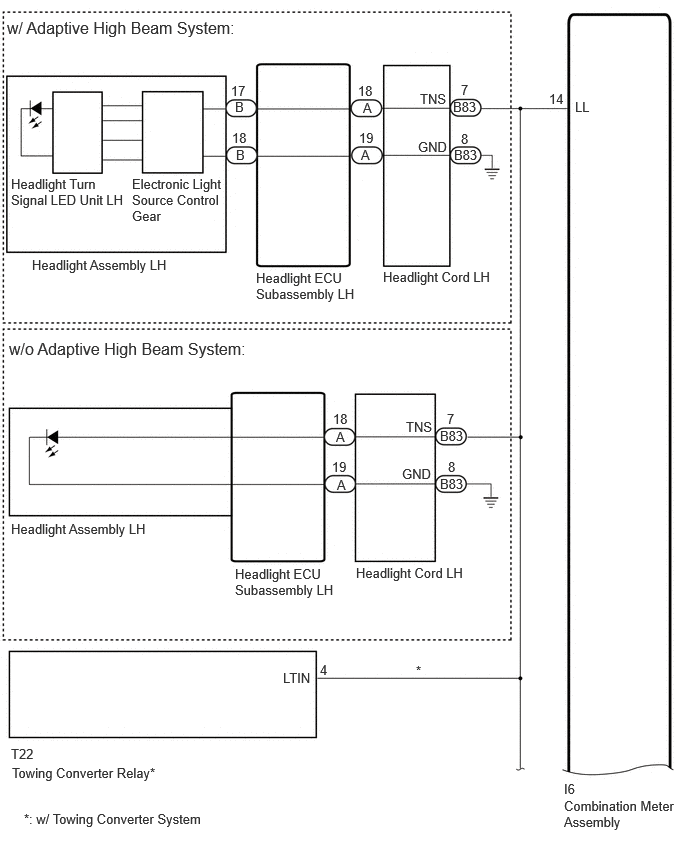

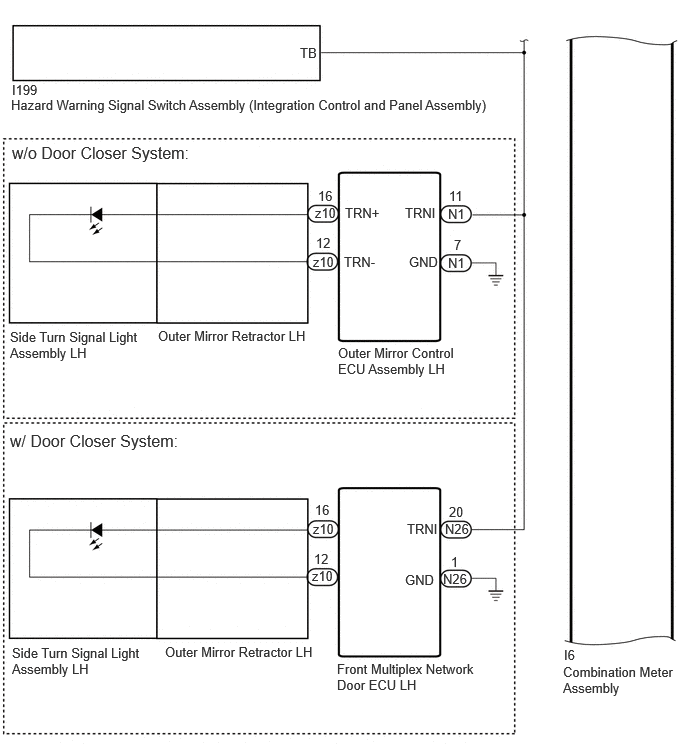

Wiring Diagram
DTC B1508-19: Turn Signal/Hazard Flasher Circuit Current Above Threshold [12/2021 - 10/2023]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
