Removal [10/2017 - 10/2020]: Procedure

REMOVE LUGGAGE COMPARTMENT FLOOR MAT
Refer to PROCEDURE - Step 23
REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
Refer to PROCEDURE - Step 24
REMOVE LUGGAGE COMPARTMENT TRIM COVER LH
Refer to PROCEDURE - Step 25
REMOVE LUGGAGE COMPARTMENT TRIM COVER RH
Refer to PROCEDURE - Step 26
REMOVE TOOL BOX
Refer to PROCEDURE - Step 27
REMOVE LOWER INNER LUGGAGE COMPARTMENT TRIM COVER
Refer to PROCEDURE - Step 28
REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER
Refer to PROCEDURE - Step 29
REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1
REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER
Refer to PROCEDURE - Step 31
REMOVE ROPE HOOK ASSEMBLY
Refer to PROCEDURE - Step 10
REMOVE REAR FLOOR FINISH PLATE
Refer to PROCEDURE - Step 11
REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY LH
Refer to PROCEDURE - Step 12
REMOVE REAR LUGGAGE COMPARTMENT TRAY BRACKET LH
HINT:

Use the same procedure described for the RH side.

Refer to PROCEDURE - Step 17 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 17 [09/2018 - 10/2020]

REMOVE SEAT BELT CONTROL ECU

Remove the nut.

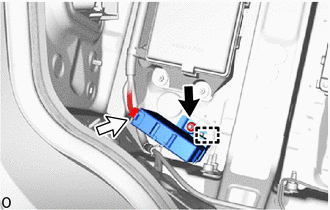

GTY837833

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Nut
	Connector

NOTE:

If the removed nut is the same shape as that shown in the illustration, replace it the supplied replacement part.

GTY833118

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the connector.
NOTE:
Do not pull the harness forcibly when disconnecting the connector.
Detach the guide and remove the seat belt control ECU.
NOTE:
- Do not apply excessive force.
- If the seat belt control ECU has been struck or dropped, replace it with a new one.
