Installation [10/2017 - 10/2020]: Procedure

INSTALL SEAT BELT CONTROL ECU

NOTE:

Do not use a seat belt control ECU if it has been dropped or has been subjected to any strong impact.

Connect the connector.

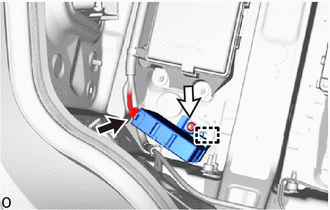

GTY826517

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Connector
	Nut

Attach the guide and temporarily install the seat belt control ECU.

Install the nut.

Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

NOTE:

If the removed nut is the same shape as that shown in the illustration, replace it the supplied replacement part.

GTY833118

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL REAR LUGGAGE COMPARTMENT TRAY BRACKET LH
HINT:

Use the same procedure described for the RH side.

Refer to PROCEDURE - Step 4
INSTALL LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY LH
Refer to PROCEDURE - Step 2
INSTALL REAR FLOOR FINISH PLATE
Refer to PROCEDURE - Step 2
INSTALL ROPE HOOK ASSEMBLY
Refer to PROCEDURE - Step 3
INSTALL REAR LUGGAGE COMPARTMENT TRIM COVER
Refer to PROCEDURE - Step 4
INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1
INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER
Refer to PROCEDURE - Step 6
INSTALL LOWER INNER LUGGAGE COMPARTMENT TRIM COVER
Refer to PROCEDURE - Step 7
INSTALL TOOL BOX
Refer to PROCEDURE - Step 8
INSTALL LUGGAGE COMPARTMENT TRIM COVER RH
Refer to PROCEDURE - Step 10
INSTALL LUGGAGE COMPARTMENT TRIM COVER LH
Refer to PROCEDURE - Step 9
INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
Refer to PROCEDURE - Step 11
INSTALL LUGGAGE COMPARTMENT FLOOR MAT
Refer to PROCEDURE - Step 12
INITIALIZE POWER TRUNK LID CONTROL SYSTEM
HINT:

When the luggage compartment door is opened using a mechanical key.

Refer to INITIALIZATION [10/2017 - 10/2020]
