Removal [10/2017 - 09/2018]: Procedure

  1. PRECAUTION
    WARNING:

    Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to PRECAUTION [10/2017 - 10/2020]

    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to PRECAUTION [10/2017 - 09/2019]

  2. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 24

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.

      Refer to PROCEDURE - Step 3

      WARNING:
      • Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

        Refer to PRECAUTION [10/2017 - 10/2020]

      • If an SRS part is accidentally deployed, it may cause a serious injury.
      GTY581108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

      Refer to INITIALIZATION [10/2017 - 09/2018]

  4. REMOVE REAR SEAT CUSHION ASSEMBLY LH

    Refer to PROCEDURE - Step 4

  5. REMOVE REAR SEAT CUSHION ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  6. REMOVE REAR CENTER SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 6

  7. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 7

  8. REMOVE REAR SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR)

    Refer to PROCEDURE - Step 8

  9. REMOVE REAR SEAT OUTER BELT ASSEMBLY RH (FLOOR ANCHOR)

    HINT:

    Use the same procedure described for the LH side.

  10. REMOVE REAR CENTER SEAT OUTER BELT ASSEMBLY (FLOOR ANCHOR)
    1. Remove the nut and floor anchor of the rear center seat outer belt assembly.

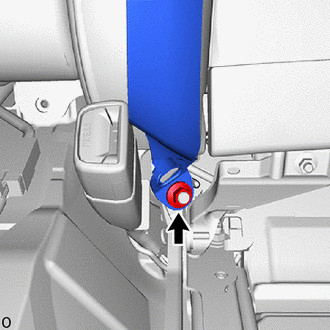

      GTY836437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE REAR SEATBACK ASSEMBLY LH

    Refer to PROCEDURE - Step 8

  12. REMOVE REAR SEATBACK ASSEMBLY RH

    Refer to PROCEDURE - Step 9

  13. REMOVE REAR CENTER SEAT ARMREST ASSEMBLY

    Refer to PROCEDURE - Step 10

  14. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 15

  15. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure described for the LH side.

  16. REMOVE REAR SEAT SIDE GARNISH LH

    Refer to PROCEDURE - Step 23

  17. REMOVE REAR SEAT SIDE GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  18. REMOVE ROOM PARTITION BOARD ASSEMBLY LH

    Refer to PROCEDURE - Step 17

  19. REMOVE ROOM PARTITION BOARD ASSEMBLY RH

    Refer to PROCEDURE - Step 18

  20. REMOVE NO. 2 EV BATTERY INTAKE DUCT

    Refer to PROCEDURE - Step 53

  21. REMOVE CENTER ROOM PARTITION GARNISH ASSEMBLY

    Refer to PROCEDURE - Step 20

  22. REMOVE ROOF SIDE RAIL GARNISH ASSEMBLY LH

    Refer to PROCEDURE - Step 27

  23. REMOVE ROOF SIDE RAIL GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  24. REMOVE PACKAGE TRAY TRIM GARNISH LH

    Refer to PROCEDURE - Step 29

  25. REMOVE PACKAGE TRAY TRIM GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  26. REMOVE PACKAGE TRAY TRIM SIDE COVER LH

    Refer to PROCEDURE - Step 31

  27. REMOVE PACKAGE TRAY TRIM SIDE COVER RH

    HINT:

    Use the same procedure described for the LH side.

  28. REMOVE INNER ROOF SIDE GARNISH ASSEMBLY LH

    Refer to PROCEDURE - Step 33

  29. REMOVE INNER ROOF SIDE GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  30. REMOVE CENTER NO. 1 SPEAKER GRILLE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 28

  31. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY
    1. Using a clip remover, remove the 2 clips.

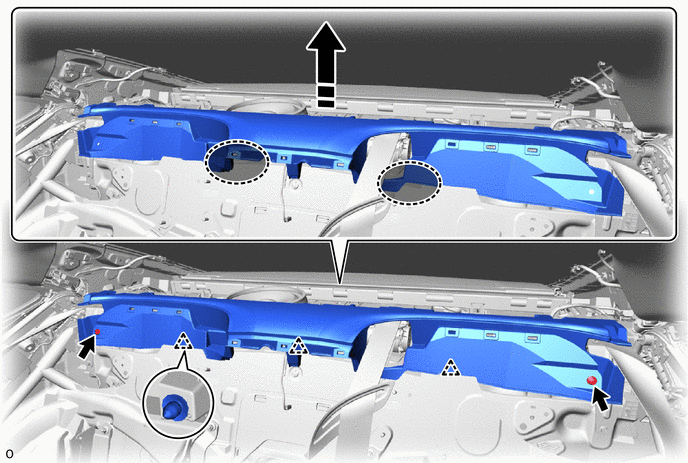

      GTY804126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
    2. Place your hands at the positions shown in the illustration and pull in the removal direction to detach the clip.
    3. Pass the rear seat outer belt assembly LH, rear seat outer belt assembly RH and rear center seat outer belt assembly through the hole of the package tray trim panel assembly.

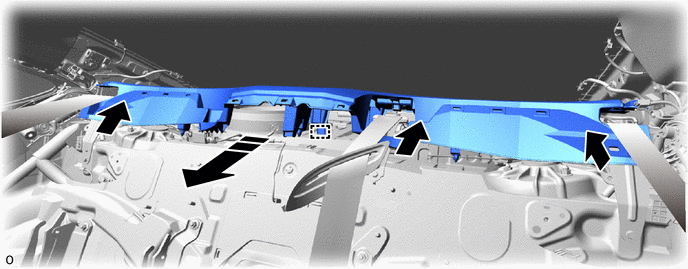

      GTY787867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
    4. pull in the removal direction to detach the guide and remove the package tray trim panel assembly.
  32. REMOVE REAR CENTER SEAT OUTER BELT ASSEMBLY
    1. Remove the 2 bolts.

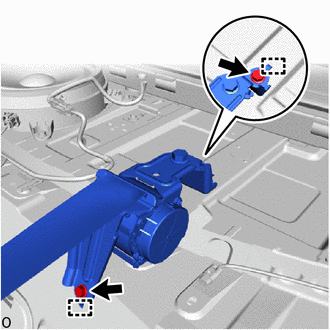

      GTY792117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the guide and remove the rear center seat outer belt assembly.
