Inspection [10/2017 - ]: Procedure
- INSPECT REAR CENTER SEAT OUTER BELT ASSEMBLY
- Before installing the rear center seat outer belt assembly, check the ELR function.

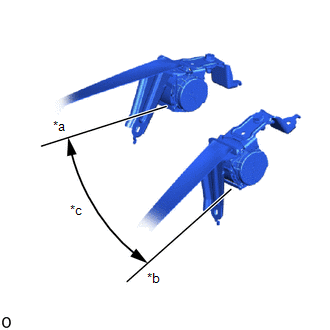

*a Unlock *b Lock *c 45° NOTE:Do not disassemble the retractor.
- When the inclination of the retractor is 15° or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 45°, check that the belt locks.
If the result is not as specified, replace the rear center seat outer belt assembly.
