Installation [10/2017 - ]: Procedure

  1. INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET

    HINT:

    Use the same procedure for the other side.

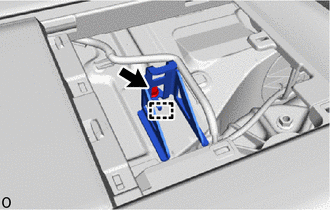

    1. GTY800683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Attach the guide.

    2. Install the child restraint seat tether anchor bracket with the bolt.

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

  2. INSTALL CENTER CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET
    1. Attach the guide.
      GTY800497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the center child restraint seat tether anchor bracket with the bolt.

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

  3. INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR COVER

    HINT:

    • Perform this procedure when replacing the child restraint seat tether anchor cover.
    • Use the same procedure for the other side.
    1. Attach the guide and install the child restraint seat tether anchor cover.

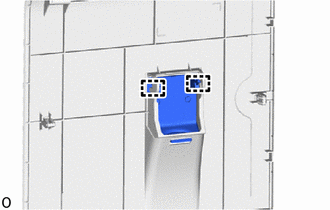

      GTY800694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL CENTER CHILD RESTRAINT SEAT TETHER ANCHOR COVER

    HINT:

    Use the same procedure described for the child restraint seat tether anchor cover.

  5. INSTALL CENTER NO. 1 SPEAKER GRILLE SUB-ASSY

    Refer to PROCEDURE - Step 3 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 3 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 3 [11/2021 - 10/2023] , or refer to PROCEDURE - Step 3 [10/2023 - ]

  6. INSTALL PACKAGE TRAY TRIM GARNISH LH

    Refer to PROCEDURE - Step 24 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 24 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 24 [11/2021 - 10/2023] , or refer to PROCEDURE - Step 24 [10/2023 - ]

  7. INSTALL PACKAGE TRAY TRIM GARNISH RH

    HINT:

    Use the same procedure described for the LH side.
