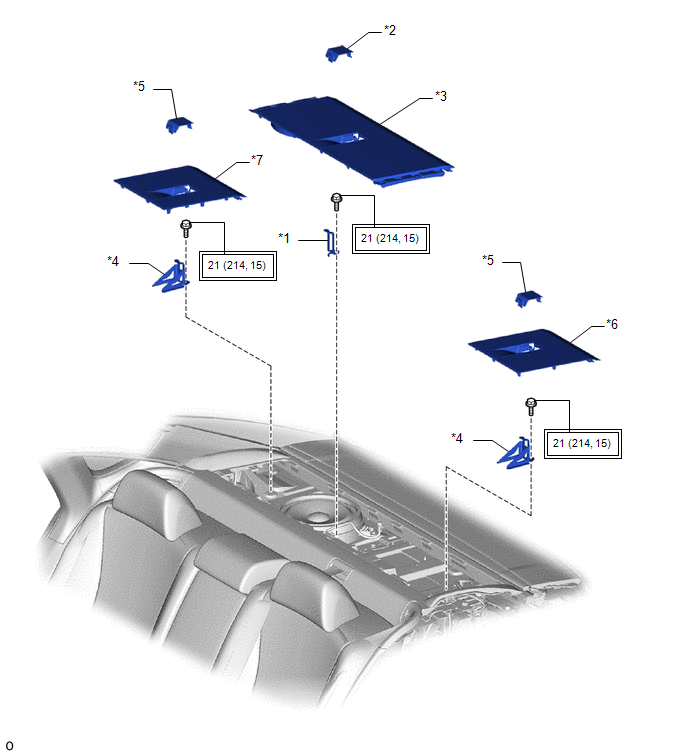

Components [10/2017 - ]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CENTER CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET | *2 | CENTER CHILD RESTRAINT SEAT TETHER ANCHOR COVER |
| *3 | CENTER NO. 1 SPEAKER GRILLE SUB-ASSY | *4 | CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET |
| *5 | CHILD RESTRAINT SEAT TETHER ANCHOR COVER | *6 | PACKAGE TRAY TRIM GARNISH LH |
| *7 | PACKAGE TRAY TRIM GARNISH RH | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
