Removal [10/2017 - 09/2018]: Procedure

  1. PRECAUTION
    WARNING:

    Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to PRECAUTION [10/2017 - 10/2020]

    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to PRECAUTION [10/2017 - 09/2019]

  2. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 24

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.

      Refer to PROCEDURE - Step 3

      WARNING:
      • Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

        Refer to PRECAUTION [10/2017 - 10/2020]

      • If an SRS part is accidentally deployed, it may cause a serious injury.
      GTY581108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

      Refer to INITIALIZATION [10/2017 - 09/2018]

  4. REMOVE REAR SEAT CUSHION ASSEMBLY (for Fixed Seat Type)

    Refer to PROCEDURE - Step 4

  5. REMOVE NO. 1 SEAT ARMREST CAP (for Fixed Seat Type)

    Refer to PROCEDURE - Step 5

  6. REMOVE REAR SEATBACK ASSEMBLY (for Fixed Seat Type)

    Refer to PROCEDURE - Step 6

  7. REMOVE REAR SEAT CUSHION ASSEMBLY LH (for Power Seat)

    Refer to PROCEDURE - Step 4

  8. REMOVE REAR SEATBACK ASSEMBLY LH (for Power Seat)

    Refer to PROCEDURE - Step 8

  9. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 7

  10. REMOVE REAR SEATBACK HOLDER (for Fixed Seat Type)

    Refer to PROCEDURE - Step 8

  11. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH
    1. Remove the bolt.

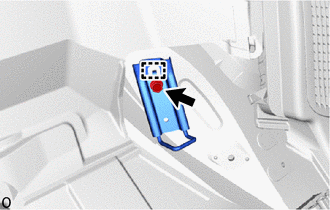

      GTY800695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the guide and remove the child restraint seat anchor bracket sub-assembly LH.
  12. REMOVE INNER CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH
    1. Remove the 2 bolts and inner child restraint seat anchor bracket sub-assembly LH.

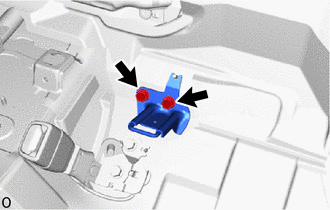

      GTY800693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
