Installation [10/2017 - 10/2020]: Procedure

INSTALL INNER CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH

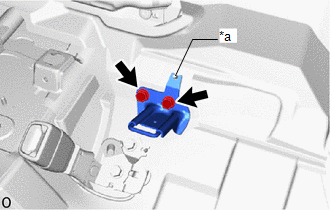

Attach the guide pin and set the inner child restraint seat anchor bracket sub-assembly LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Guide Pin

Install the inner child restraint seat anchor bracket sub-assembly LH with the 2 bolts.
Torque: 31 N.m (316 kgf/cm, 23 ft.lbf)

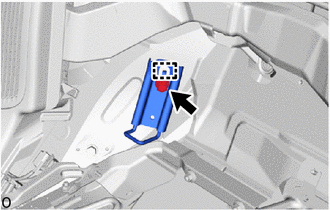

INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH

Attach the guide.

Install the child restraint seat anchor bracket sub-assembly LH with the bolt.
Torque: 31 N.m (316 kgf/cm, 23 ft.lbf)

INSTALL REAR SEATBACK HOLDER (for Fixed Seat Type)
Refer to PROCEDURE - Step 3
INSTALL REAR SEAT CUSHION LOCK HOOK
Refer to PROCEDURE - Step 4
INSTALL REAR SEATBACK ASSEMBLY (for Fixed Seat Type)
Refer to PROCEDURE - Step 5
INSTALL NO. 1 SEAT ARMREST CAP (for Fixed Seat Type)
Refer to PROCEDURE - Step 6
INSTALL REAR SEAT CUSHION ASSEMBLY (for Fixed Seat Type)
Refer to PROCEDURE - Step 7
INSTALL REAR SEATBACK ASSEMBLY LH (for Power Seat)
Refer to PROCEDURE - Step 14
INSTALL REAR SEAT CUSHION ASSEMBLY LH (for Power Seat)
Refer to PROCEDURE - Step 18
CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to PROCEDURE - Step 2
INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
Refer to PROCEDURE - Step 11
INSPECT SRS WARNING LIGHT
Refer to OPERATION CHECK [10/2017 - 10/2020]
INSPECT SEAT BELT WARNING SYSTEM
Refer to ON-VEHICLE INSPECTION [10/2017 - 10/2020]
INSPECT REAR SEAT ASSEMBLY (for Power Seat)
Refer to OPERATION CHECK [10/2017 - 09/2018] , or refer to OPERATION CHECK [09/2018 - 09/2019] , or refer to OPERATION CHECK [09/2019 - ]
INSPECT SEAT HEATER SYSTEM (w/ Seat Heater System)
Refer to OPERATION CHECK [10/2017 - 10/2022]
INSPECT CLIMATE CONTROL SEAT SYSTEM (for Power Seat)
Refer to ON-VEHICLE INSPECTION [10/2017 - 10/2022]
INSPECT SEAT VIBRATION SYSTEM (w/ Refresh Seat)
Refer to OPERATION CHECK [10/2017 - 10/2020]
