Inspection [10/2017 - ]: Procedure
- INSPECT REAR SEAT OUTER BELT ASSEMBLY LH WARNING:
- The rear seat outer belt assembly LH contains an internal pretensioner, so when performing component inspection, make sure not to accidentally connect the auxiliary battery to the pretensioner connector terminal.
- If the auxiliary battery is connected to the pretensioner connector terminal, the pretensioner will activate, which could result in serious injury.
- Check the seat belt tension reducer operation.
- Check the operating sound.

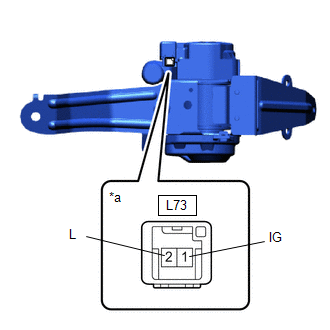

*a Component without harness connected
(Rear Seat Outer Belt Assembly LH)OK
Tester Connection Specified Condition L73-1 (IG) - Auxiliary battery positive (+)
L73-2 (L) - Auxiliary battery negative (-)Operating sound is heard when the magnetized solenoid is attracting the plunger - Pull out the seat belt again, disconnect the negative (-) lead of the auxiliary battery and allow the seat belt to retract. Listen to the operating sound again and check that the operating sound volume has increased.
If the result is not as specified, replace the rear seat outer belt assembly LH.
- Check the operating sound.
- Before installing the rear seat outer belt assembly LH, check the ELR function.

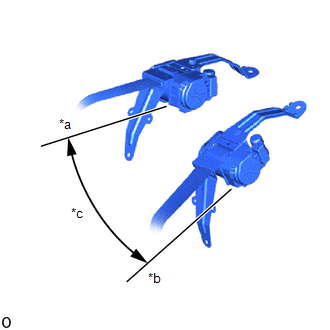

*a Unlock *b Lock *c 45° NOTE:Do not disassemble the retractor.
- When the inclination of the retractor is 15° or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 45°, check that the belt locks.
If the result is not as specified, replace the rear seat outer belt assembly LH.
- When the inclination of the retractor is 15° or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 45°, check that the belt locks.
- INSPECT REAR SEAT OUTER BELT ASSEMBLY RH WARNING:

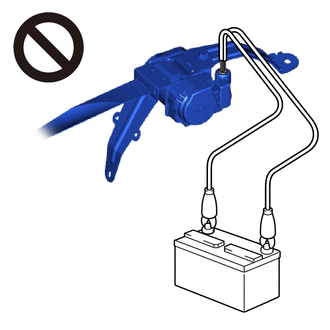

- The rear seat outer belt assembly RH contains an internal pretensioner, so when performing component inspection, make sure not to accidentally connect the auxiliary battery to the pretensioner connector terminal.
- If the auxiliary battery is connected to the pretensioner connector terminal, the pretensioner will activate, which could result in serious injury.
- Check the seat belt tension reducer operation.
- Check the operating sound.

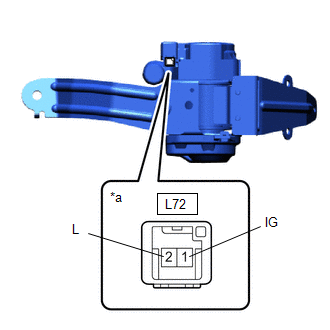

*a Component without harness connected
(Rear Seat Outer Belt Assembly RH)OK
Tester Connection Specified Condition L72-1 (IG) - Auxiliary battery positive (+)
L72-2 (L) - Auxiliary battery negative (-)Operating sound is heard when the magnetized solenoid is attracting the plunger - Pull out the seat belt again, disconnect the negative (-) lead of the auxiliary battery and allow the seat belt to retract. Listen to the operating sound again and check that the operating sound volume has increased.
If the result is not as specified, replace the rear seat outer belt assembly RH.
- Check the operating sound.
- Before installing the rear seat outer belt assembly RH, check the ELR function.
*a Unlock *b Lock *c 45° NOTE:Do not disassemble the retractor.
- When the inclination of the retractor is 15° or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 45°, check that the belt locks.
If the result is not as specified, replace the rear seat outer belt assembly RH.
- When the inclination of the retractor is 15° or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 45°, check that the belt locks.
