Components [10/2017 - ]

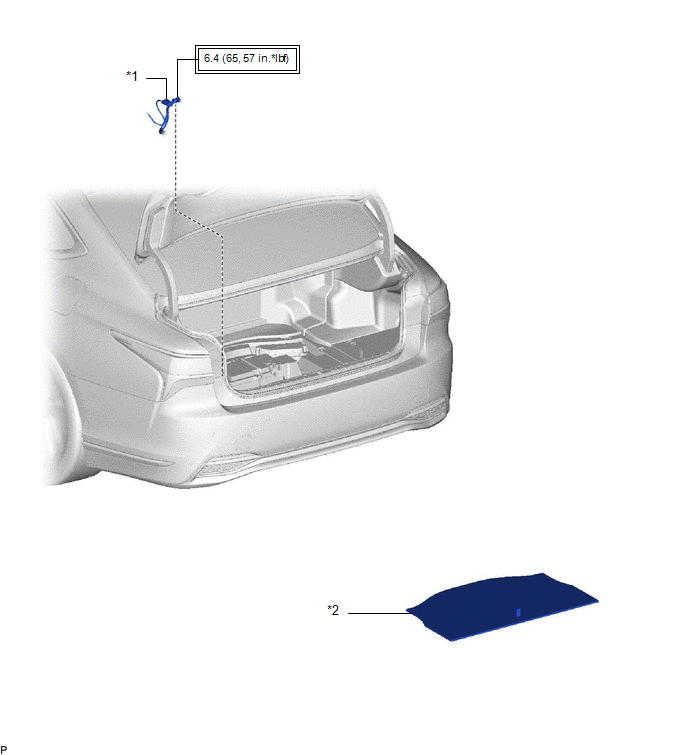

Fig 1: Rear Seat Outer Belt Assembly With Pre-Tensioner (For Power Seat) Replacement Components With Torque Specifications (1 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NEGATIVE AUXILIARY BATTERY TERMINAL | *2 | LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

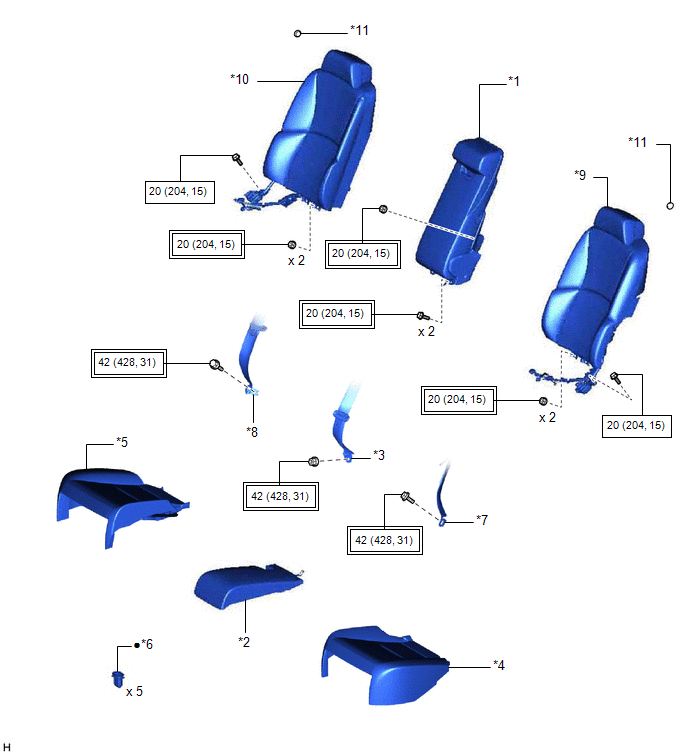

Fig 2: Rear Seat Outer Belt Assembly With Pre-Tensioner (For Power Seat) Replacement Components With Torque Specifications (2 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR CENTER SEAT ARMREST ASSEMBLY | *2 | REAR CENTER SEAT CUSHION ASSEMBLY |
| *3 | REAR CENTER SEAT OUTER BELT ASSEMBLY (FLOOR ANCHOR) | *4 | REAR SEAT CUSHION ASSEMBLY LH |
| *5 | REAR SEAT CUSHION ASSEMBLY RH | *6 | REAR SEAT CUSHION LOCK HOOK |
| *7 | REAR SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR) | *8 | REAR SEAT OUTER BELT ASSEMBLY RH (FLOOR ANCHOR) |
| *9 | REAR SEATBACK ASSEMBLY LH | *10 | REAR SEATBACK ASSEMBLY RH |
| *11 | CAP | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | - | - |

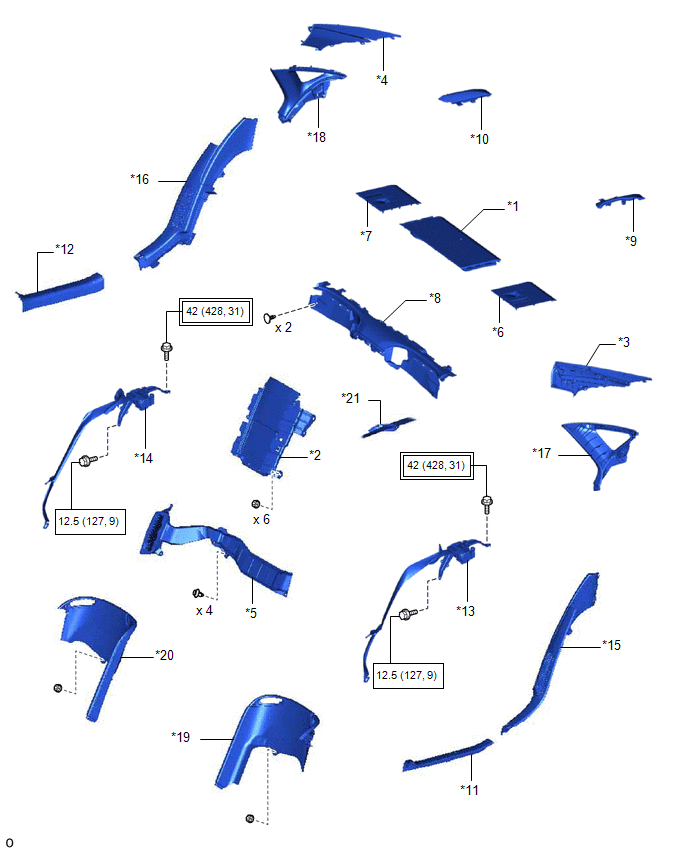

Fig 3: Rear Seat Outer Belt Assembly With Pre-Tensioner (For Power Seat) Replacement Components With Torque Specifications (3 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CENTER NO. 1 SPEAKER GRILLE SUB-ASSEMBLY | *2 | CENTER ROOM PARTITION GARNISH ASSEMBLY |
| *3 | INNER ROOF SIDE GARNISH ASSEMBLY LH | *4 | INNER ROOF SIDE GARNISH ASSEMBLY RH |
| *5 | NO. 2 EV BATTERY INTAKE DUCT | *6 | PACKAGE TRAY TRIM GARNISH LH |
| *7 | PACKAGE TRAY TRIM GARNISH RH | *8 | PACKAGE TRAY TRIM PANEL ASSEMBLY |
| *9 | PACKAGE TRAY TRIM SIDE COVER LH | *10 | PACKAGE TRAY TRIM SIDE COVER RH |
| *11 | REAR DOOR SCUFF PLATE LH | *12 | REAR DOOR SCUFF PLATE RH |
| *13 | REAR SEAT OUTER BELT ASSEMBLY LH | *14 | REAR SEAT OUTER BELT ASSEMBLY RH |
| *15 | REAR SEAT SIDE GARNISH LH | *16 | REAR SEAT SIDE GARNISH RH |
| *17 | ROOF SIDE RAIL GARNISH ASSEMBLY LH | *18 | ROOF SIDE RAIL GARNISH ASSEMBLY RH |
| *19 | ROOM PARTITION BOARD ASSEMBLY LH | *20 | ROOM PARTITION BOARD ASSEMBLY RH |
| *21 | REAR CENTER SEAT OUTER BELT ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |
