DTC B0098-87: Right Side Restraints Sensor 3 Missing Message [11/2021 - 10/2023]: Procedure
- CHECK DTC
Pre-procedure1
- Turn the power switch on (IG), and wait for at least 60 seconds.
Procedure1
- Check for DTCs.
Body Electrical > SRS Airbag > Trouble Codes
Result
Result Proceed to B0098-87 and B009E-87 are output A B0098-87 is output B B0098-87 and B009E-87 are not output C Post-procedure1
- None
Result:
B
REPLACE REAR AIRBAG SENSOR RH. Refer to REMOVAL [11/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023]
Result:
C
USE SIMULATION METHOD TO CHECK. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [11/2021 - 10/2022] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [10/2022 - 10/2023]
Result:
A
See step 2
- Turn the power switch on (IG), and wait for at least 60 seconds.
- CHECK DOOR SIDE AIRBAG SENSOR RH
- Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
- Disconnect the door side airbag sensor RH connector.
- Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
- Turn the power switch on (IG), and wait for at least 60 seconds.
- Clear the DTCs stored in memory.
Body Electrical > SRS Airbag > Clear DTCs
Result
Proceed to NEXT
Result:
NEXT
See step 3
- CHECK DOOR SIDE AIRBAG SENSOR RH
Pre-procedure1
- Turn the power switch off.
- Turn the power switch on (IG), and wait for at least 60 seconds.
Procedure1
- Check for DTCs.
Body Electrical > SRS Airbag > Trouble Codes
Result
Result Proceed to B0098-87 and B009E-87 are output A B009E-87 is output B Post-procedure1
- Turn the power switch off.
- Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
Result:
B
REPLACE DOOR SIDE AIRBAG SENSOR RH. Refer to REMOVAL [11/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023]
Result:
A
See step 4
- CHECK CONNECTION OF CONNECTORS
- Check that the connectors are properly connected to the rear airbag sensor RH and door side airbag sensor assembly RH.
OK
The connectors are properly connected.
Result
Proceed to OK NG
Result:
NG
CONNECT CONNECTORS PROPERLY
Result:
OK
See step 5
- Check that the connectors are properly connected to the rear airbag sensor RH and door side airbag sensor assembly RH.
- CHECK CONNECTORS
Pre-procedure1
- Disconnect the side airbag sensor assembly LH connector.
*1 Rear Airbag Sensor LH *2 Door Side Airbag Sensor LH *3 Wire Harness - Disconnect the door side airbag sensor LH connector.
Procedure1
- Check that the terminals of the connectors are not deformed or damaged.
OK
The terminals of the connectors are not deformed or damaged.
Post-procedure1
- None
Result
Proceed to OK NG
Result:
NG
CONNECT CONNECTORS PROPERLY
Result:
OK
See step 6
- Disconnect the side airbag sensor assembly LH connector.
- CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT IN THE CIRCUIT)
- Measure the resistance according to the value(s) in the table below.

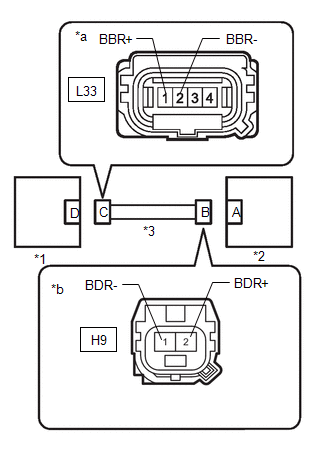

*1 Rear Airbag Sensor RH *2 Door Side Airbag Sensor RH *3 Wire Harness *a Front view of wire harness connector
(to Rear Airbag Sensor RH)*b Front view of wire harness connector
(to Door Side Airbag Sensor RH)Standard Resistance
Tester Connection Condition Specified Condition L33-1 (BBR+) - L33-2 (BBR-) Always 1 MΩ or higher Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 7
- Measure the resistance according to the value(s) in the table below.
- CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT TO GROUND IN THE CIRCUIT)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition L33-1 (BBR+) - Body ground Always 1 MΩ or higher L33-2 (BBR-) - Body ground Always 1 MΩ or higher *1 Rear Airbag Sensor RH *2 Door Side Airbag Sensor RH *3 Wire Harness *a Front view of wire harness connector
(to Rear Airbag Sensor RH)*b Front view of wire harness connector
(to Door Side Airbag Sensor RH)Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 8
- Measure the resistance according to the value(s) in the table below.
- CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT TO +B IN THE CIRCUIT)
Pre-procedure1
- Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
*1 Rear Airbag Sensor RH *2 Door Side Airbag Sensor RH *3 Wire Harness *a Front view of wire harness connector
(to Rear Airbag Sensor RH)*b Front view of wire harness connector
(to Door Side Airbag Sensor RH) - Turn the power switch on (IG).
Procedure1
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Switch Condition Specified Condition L33-1 (BBR+) - Body ground Power switch on (IG) Below 1 V L33-2 (BBR-) - Body ground Power switch on (IG) Below 1 V Result
Proceed to OK NG Post-procedure1
- Turn the power switch off.
- Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 9
- Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
- CHECK CONNECTORS
Pre-procedure1
- Disconnect the airbag ECU assembly connector.
*1 Rear Airbag Sensor RH *2 Airbag ECU Assembly *3 Wire Harness - Check that the terminals of the connectors are not deformed or damaged.
OK
The terminals of the connectors are not deformed or damaged.
Result
Proceed to OK NG Post-procedure1
- None
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 10
- Disconnect the airbag ECU assembly connector.
- CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT IN THE CIRCUIT)
- Measure the resistance according to the value(s) in the table below.

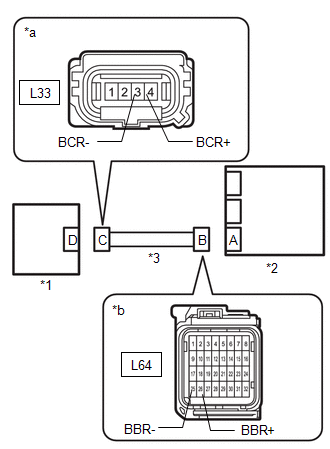

*1 Rear Airbag Sensor RH *2 Airbag ECU Assembly *3 Wire Harness *a Front view of wire harness connector
(to Rear Airbag Sensor RH)*b Front view of wire harness connector
(to Airbag ECU Assembly)Standard Resistance
Tester Connection Condition Specified Condition L33-4 (BCR+) - L33-3 (BCR-) Always 1 MΩ or higher Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 11
- Measure the resistance according to the value(s) in the table below.
- CHECK HARNESS AND CONNECTOR (CHECK FOR OPEN IN THE CIRCUIT)
Pre-procedure1
- Using a service wire, connect terminals 26 (BBR+) and 25 (BBR-) of connector B.NOTE:
Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.
*1 Rear Airbag Sensor RH *2 Airbag ECU Assembly *3 Wire Harness *4 Service Wire *a Front view of wire harness connector
(to Rear Airbag Sensor RH)*b Front view of wire harness connector
(to Airbag ECU Assembly)Procedure1
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition L33-4 (BCR+) - L33-3 (BCR-) Always Below 1 Ω Result
Proceed to OK NG Post-procedure1
- Disconnect the service wire from connector B.
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 12

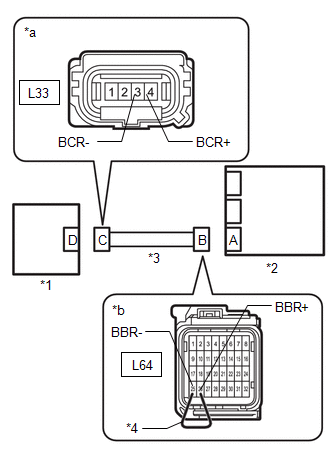

- Using a service wire, connect terminals 26 (BBR+) and 25 (BBR-) of connector B.
- CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT TO GROUND IN THE CIRCUIT)
- Measure the resistance according to the value(s) in the table below.
*1 Rear Airbag Sensor RH *2 Airbag ECU Assembly *3 Wire Harness *a Front view of wire harness connector
(to Rear Airbag Sensor RH)*b Front view of wire harness connector
(to Airbag ECU Assembly)Standard Resistance
Tester Connection Condition Specified Condition L33-4 (BCR+) - Body ground Always 1 MΩ or higher L33-3 (BCR-) - Body ground Always 1 MΩ or higher Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 13
- Measure the resistance according to the value(s) in the table below.
- CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT TO +B IN THE CIRCUIT)
Pre-procedure1
- Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
*1 Rear Airbag Sensor RH *2 Airbag ECU Assembly *3 Wire Harness *a Front view of wire harness connector
(to Rear Airbag Sensor RH)*b Front view of wire harness connector
(to Airbag ECU Assembly) - Turn the power switch on (IG).
Procedure1
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Switch Condition Specified Condition L33-4 (BCR+) - Body ground Power switch on (IG) Below 1 V L33-3 (BCR-) - Body ground Power switch on (IG) Below 1 V Result
Proceed to OK NG Post-procedure1
- Turn the power switch off.
- Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 14
- Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
- CHECK REAR AIRBAG SENSOR RH
- Connect the L64 airbag ECU assembly connector.
*1 Rear Airbag Sensor LH *2 Airbag ECU Assembly *3 Wire Harness - Connect the L33 rear airbag sensor LH connector.
- Interchange the rear airbag sensor RH with LH and connect the connectors.
- Connect the cable to the negative (-) auxiliary battery terminal.
- Turn the power switch on (IG), and wait for at least 60 seconds.
- Clear the DTCs stored in memory.
Body Electrical > SRS Airbag > Clear DTCs
Result
Proceed to NEXT
Result:
NEXT
See step 15
- Connect the L64 airbag ECU assembly connector.
- CHECK REAR AIRBAG SENSOR LH
Pre-procedure1
- Turn the power switch off.
- Turn the power switch on (IG), and wait for at least 60 seconds.
Procedure1
- Check for DTCs.
Body Electrical > SRS Airbag > Trouble Codes
Result
Result Proceed to B0098-87 and B009E-87 are output A B0093-87 and B009B-87 are output B Post-procedure1
- Turn the power switch off.
- Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
- Return the rear airbag sensor LH and RH to their original positions and connect the connectors.
Result:
B
REPLACE REAR AIRBAG SENSOR RH. Refer to REMOVAL [11/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023]
Result:
A
See step 16
- CHECK AIRBAG ECU ASSEMBLY
- Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
*1 Rear Airbag Sensor RH *2 Airbag ECU Assembly *3 Wire Harness - Turn the power switch on (IG), and wait for at least 60 seconds.
- Clear the DTCs stored in memory.
Body Electrical > SRS Airbag > Clear DTCs
Result
Proceed to NEXT
Result:
NEXT
See step 17
- Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
- CHECK AIRBAG ECU ASSEMBLY
Pre-procedure1
- Turn the power switch off.
- Turn the power switch on (IG), and wait for at least 60 seconds.
Procedure1
- Check for DTCs.
Body Electrical > SRS Airbag > Trouble Codes
Result
Result Proceed to B0098-87 and B009E-87 are output A B0098-87 and B009E-87 are not output B Post-procedure1
- Turn the power switch off.
- Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
Result:
A
REPLACE AIRBAG ECU ASSEMBLY. Refer to REMOVAL [11/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023]
Result:
B
USE SIMULATION METHOD TO CHECK. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [11/2021 - 10/2022] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [10/2022 - 10/2023]
