DTC B0097-87: Right Side Restraints Sensor 2 Missing Message [11/2021 - 10/2023]: Procedure

  1. CHECK CONNECTION OF CONNECTORS

    Pre-procedure1

    1. Turn the power switch off.
    2. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.

      Procedure1

    3. Check that the connectors are properly connected to the airbag ECU assembly and No. 2 side airbag sensor assembly RH.

      OK

      The connectors are properly connected.

      Post-procedure1

    4. None

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    CONNECT CONNECTORS PROPERLY

    Result:

    OK

    See step  2

  2. CHECK CONNECTORS

    Pre-procedure1

    1. Disconnect the airbag ECU assembly connector.
      GTY1018521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 2 Side Airbag Sensor Assembly RH
      *2 Airbag ECU Assembly
      *3 Wire Harness
    2. Disconnect the No. 2 side airbag sensor assembly RH connector.

      Procedure1

    3. Check that the terminals of the connectors are not deformed or damaged.

      OK

      The terminals of the connectors are not deformed or damaged.

      OK

      The terminals of the connectors are not deformed or damaged.

      Post-procedure1

    4. None

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT IN THE CIRCUIT)
    1. Measure the resistance according to the value(s) in the table below.

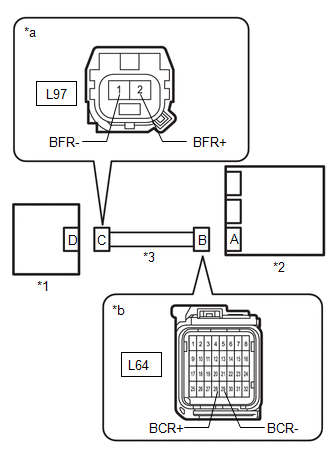

      GTY1087846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 2 Side Airbag Sensor Assembly RH
      *2 Airbag ECU Assembly
      *3 Wire Harness
      *a Front view of wire harness connector
      (to No. 2 Side Airbag Sensor Assembly RH)
      *b Front view of wire harness connector
      (to Airbag ECU Assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition
      L97-2 (BFR+) - L97-1 (BFR-) Always 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  4

  4. CHECK HARNESS AND CONNECTOR (CHECK FOR OPEN IN THE CIRCUIT)

    Pre-procedure1

    1. Using a service wire, connect terminals 28 (BCR+) and 29 (BCR-) of connector B.
      NOTE:

      Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

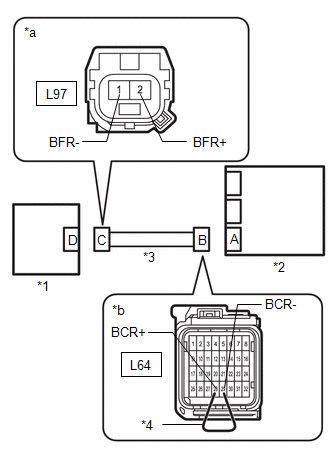

      GTY1088026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 2 Side Airbag Sensor Assembly RH
      *2 Airbag ECU Assembly
      *3 Wire Harness
      *4 Service Wire
      *a Front view of wire harness connector
      (to No. 2 Side Airbag Sensor Assembly RH)
      *b Front view of wire harness connector
      (to Airbag ECU Assembly)

      Procedure1

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      L97-2 (BFR+) - L97-1 (BFR-) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

      Post-procedure1

    3. Disconnect the service wire from connector B.

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  5

  5. CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT TO GROUND IN THE CIRCUIT)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1087846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 2 Side Airbag Sensor Assembly RH
      *2 Airbag ECU Assembly
      *3 Wire Harness
      *a Front view of wire harness connector
      (to No. 2 Side Airbag Sensor Assembly RH)
      *b Front view of wire harness connector
      (to Airbag ECU Assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition
      L97-2 (BFR+) - Body ground Always 1 MΩ or higher
      L97-1 (BFR-) - Body ground Always 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  6

  6. CHECK WIRE HARNESS (CHECK FOR SHORT TO +B IN THE CIRCUIT)

    Pre-procedure1

    1. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
      GTY1087846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 2 Side Airbag Sensor Assembly RH
      *2 Airbag ECU Assembly
      *3 Wire Harness
      *a Front view of wire harness connector
      (to No. 2 Side Airbag Sensor Assembly RH)
      *b Front view of wire harness connector
      (to Airbag ECU Assembly)
    2. Turn the power switch on (IG).

      Procedure1

    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      L97-2 (BFR+) - Body ground Power switch on (IG) Below 1 V
      L97-1 (BFR-) - Body ground Power switch on (IG) Below 1 V

      Result

      Proceed to
      OK
      NG

      Post-procedure1

    4. Turn the power switch off.
    5. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  7

  7. CHECK NO. 2 SIDE AIRBAG SENSOR ASSEMBLY RH
    1. Connect the connector to the airbag ECU assembly.
      GTY972593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 2 Side Airbag Sensor Assembly LH
      *2 Airbag ECU Assembly
      *3 Wire Harness
    2. Interchange the No. 2 side airbag sensor assembly RH with LH and connect the connectors.
    3. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
    4. Turn the power switch on (IG), and wait for at least 60 seconds.
    5. Clear the DTCs stored in memory.

      Body Electrical > SRS Airbag > Clear DTCs

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  8

  8. CHECK NO. 2 SIDE AIRBAG SENSOR ASSEMBLY RH

    Pre-procedure1

    1. Turn the power switch off.
    2. Turn the power switch on (IG), and wait for at least 60 seconds.

      Procedure1

    3. Check for DTCs.

      Body Electrical > SRS Airbag > Trouble Codes

      Result

      Result  Proceed to
      B0097-87 is output A
      B0092-87 is not output B
      B0092-87 and B0097-87 are not output C

      Post-procedure1

    4. Turn the power switch off.
    5. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
    6. Return the No. 2 side airbag sensor assembly LH and RH to their original positions and connect the connectors.

    Result:

    A

    REPLACE AIRBAG ECU ASSEMBLY. Refer to  REMOVAL [11/2021 - 10/2022]  , or refer to  REMOVAL [10/2022 - 10/2023]

    Result:

    B

    REPLACE NO. 2 SIDE AIRBAG SENSOR ASSEMBLY RH. Refer to  REMOVAL [11/2021 - 10/2022]  , or refer to  REMOVAL [10/2022 - 10/2023]

    Result:

    C

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [11/2021 - 10/2022]  , or refer to  HOW TO PROCEED WITH TROUBLESHOOTING [10/2022 - 10/2023]
