DTC B0092-87: Left Side Restraints Sensor 2 Missing Message [11/2021 - 10/2023]: Procedure
- CHECK CONNECTION OF CONNECTORS
Pre-procedure1
- Turn the power switch off.
- Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
Procedure1
- Check that the connectors are properly connected to the airbag ECU assembly and No. 2 side airbag sensor assembly LH.
OK
The connectors are properly connected.
Result
Proceed to OK NG Post-procedure1
- None
Result:
NG
CONNECT CONNECTORS PROPERLY
Result:
OK
See step 2
- CHECK CONNECTORS
Pre-procedure1
- Disconnect the airbag ECU assembly connector.
*1 No. 2 Side Airbag Sensor Assembly LH *2 Airbag ECU Assembly *3 Wire Harness - Disconnect the No. 2 side airbag sensor assembly LH connector.
Procedure1
- Check that the terminals of the connectors are not deformed or damaged.
OK
The terminals of the connectors are not deformed or damaged.
Result
Proceed to OK NG Post-procedure1
- None
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 3
- Disconnect the airbag ECU assembly connector.
- CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT IN THE CIRCUIT)
Pre-procedure1
- None

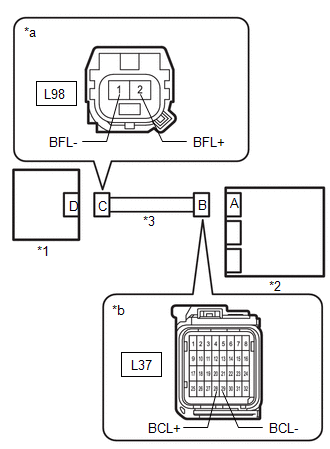

*1 No. 2 Side Airbag Sensor Assembly LH *2 Airbag ECU Assembly *3 Wire Harness *a Front view of wire harness connector
(to No. 2 Side Airbag Sensor Assembly LH)*b Front view of wire harness connector
(to Airbag ECU Assembly)Procedure1
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition L98-2 (BFL+) - L98-1 (BFL-) Always 1 MΩ or higher Result
Proceed to OK NG Post-procedure1
- None
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 4
- None
- CHECK HARNESS AND CONNECTOR (CHECK FOR OPEN IN THE CIRCUIT)
Pre-procedure1
- Using a service wire, connect terminals 28 (BCL+) and 29 (BCL-) of connector B.NOTE:
Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

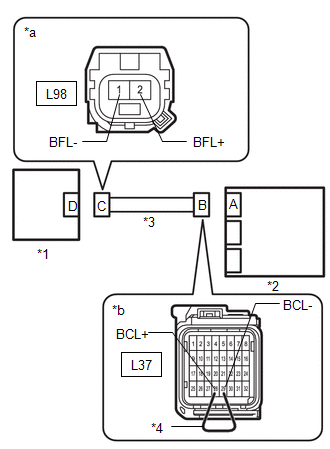

*1 No. 2 Side Airbag Sensor Assembly LH *2 Airbag ECU Assembly *3 Wire Harness *4 Service Wire *a Front view of wire harness connector
(to No. 2 Side Airbag Sensor Assembly LH)*b Front view of wire harness connector
(to Airbag ECU Assembly)Procedure1
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition L98-2 (BFL+) - L98-1 (BFL-) Always Below 1 Ω Result
Proceed to OK NG Post-procedure1
- Disconnect the service wire from connector B.
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 5
- Using a service wire, connect terminals 28 (BCL+) and 29 (BCL-) of connector B.
- CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT TO GROUND IN THE CIRCUIT)
Pre-procedure1
- None
*1 No. 2 Side Airbag Sensor Assembly LH *2 Airbag ECU Assembly *3 Wire Harness *a Front view of wire harness connector
(to No. 2 Side Airbag Sensor Assembly LH)*b Front view of wire harness connector
(to Airbag ECU Assembly)Procedure1
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition L98-2 (BFL+) - Body ground Always 1 MΩ or higher L98-1 (BFL-) - Body ground Always 1 MΩ or higher Post-procedure1
Result
Proceed to OK NG - None
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 6
- None
- CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT TO +B IN THE CIRCUIT)
Pre-procedure1
- Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
*1 No. 2 Side Airbag Sensor Assembly LH *2 Airbag ECU Assembly *3 Wire Harness *a Front view of wire harness connector
(to No. 2 Side Airbag Sensor Assembly LH)*b Front view of wire harness connector
(to Airbag ECU Assembly) - Turn the power switch on (IG).
Procedure1
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Switch Condition Specified Condition N23-2 (BFL+) - Body ground Power switch on (IG) Below 1 V N23-1 (BFL-) - Body ground Power switch on (IG) Below 1 V Result
Proceed to OK NG Post-procedure1
- Turn the power switch off.
- Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 7
- Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
- CHECK NO. 2 SIDE AIRBAG SENSOR ASSEMBLY LH
- Connect the L37 airbag ECU assembly connector.
*1 No. 2 Side Airbag Sensor Assembly RH *2 Airbag ECU Assembly *3 Wire Harness - Interchange the No. 2 side airbag sensor assembly LH with RH and connect the connectors.
- Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
- Turn the power switch on (IG), and wait for at least 60 seconds.
- Clear the DTCs stored in memory.
Body Electrical > SRS Airbag > Clear DTCs
Result
Proceed to NEXT
Result:
NEXT
See step 8
- Connect the L37 airbag ECU assembly connector.
- CHECK NO. 2 SIDE AIRBAG SENSOR ASSEMBLY LH
Pre-procedure1
- Turn the power switch off.
- Turn the power switch on (IG), and wait for at least 60 seconds.
Procedure1
- Check for DTCs.
Body Electrical > SRS Airbag > Trouble Codes
Result
Result Proceed to B0092-87 is output A B0097-87 is output B B0092-87 and B0097-87 are not output C Post-procedure1
- Turn the power switch off.
- Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
- Return the No. 2 side airbag sensor assembly RH and LH to their original positions and connect the connectors.
Result:
A
REPLACE AIRBAG ECU ASSEMBLY. Refer to REMOVAL [11/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023]
Result:
B
REPLACE NO. 2 SIDE AIRBAG SENSOR ASSEMBLY LH. Refer to REMOVAL [11/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023]
Result:
C
USE SIMULATION METHOD TO CHECK. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [11/2021 - 10/2022] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [10/2022 - 10/2023]
