DTC B0090-87: Left Frontal Restraints Sensor Missing Message [11/2021 - 10/2023]: Procedure
- CHECK CONNECTION OF CONNECTORS
Pre-procedure1
- Turn the power switch off.
- Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
Procedure1
- Check that the connectors are properly connected to the airbag ECU assembly and front airbag sensor LH.
OK
The connectors are properly connected.
Result
Proceed to OK NG Post-procedure1
- None
Result:
NG
CONNECT CONNECTORS PROPERLY
Result:
OK
See step 2
- CHECK CONNECTORS
Pre-procedure1
- Disconnect the airbag ECU assembly connector.
*1 Front Airbag Sensor LH *2 Airbag ECU Assembly *3 Wire Harness - Disconnect the front airbag sensor LH connector.
Procedure1
- Check that the terminals of the connectors are not deformed or damaged.
OK
The terminals of the connectors are not deformed or damaged.
Result
Proceed to OK NG Post-procedure1
- None
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 3
- Disconnect the airbag ECU assembly connector.
- CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT IN THE CIRCUIT)
Pre-procedure1
- None

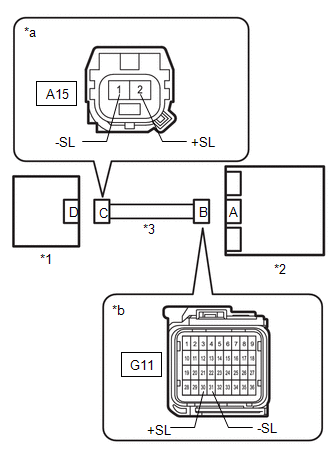

*1 Front Airbag Sensor LH *2 Airbag ECU Assembly *3 Wire Harness *a Front view of wire harness connector
(to Front Airbag Sensor LH)*b Front view of wire harness connector
(to Airbag ECU Assembly)Procedure1
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition A15-2 (+SL) - A15-1 (-SL) Always 1 MΩ or higher Result
Proceed to OK NG Post-procedure1
- None
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 4
- None
- CHECK HARNESS AND CONNECTOR (CHECK FOR OPEN IN THE CIRCUIT)
Pre-procedure1

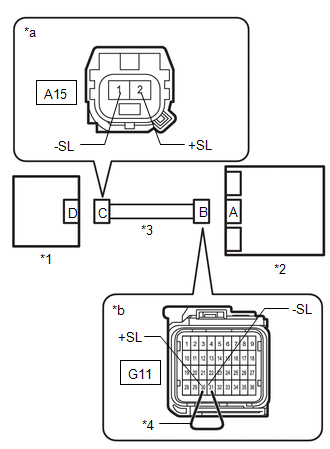

- Using a service wire, connect terminals 30 (+SL) and 31 (-SL) of connector B.
*1 Front Airbag Sensor LH *2 Airbag ECU Assembly *3 Wire Harness *4 Service Wire *a Front view of wire harness connector
(to Front Airbag Sensor LH)*b Front view of wire harness connector
(to Airbag ECU Assembly)NOTE:Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.
Procedure1
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition A15-2 (+SL) - A15-1 (-SL) Always Below 1 Ω Result
Proceed to OK NG Post-procedure1
- Disconnect the service wire from connector B.
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 5
- Using a service wire, connect terminals 30 (+SL) and 31 (-SL) of connector B.
- CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT TO GROUND IN THE CIRCUIT)
Pre-procedure1
- None
*1 Front Airbag Sensor LH *2 Airbag ECU Assembly *3 Wire Harness *a Front view of wire harness connector
(to Front Airbag Sensor LH)*b Front view of wire harness connector
(to Airbag ECU Assembly)Procedure1
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition A15-2 (+SL) - Body ground Always 1 MΩ or higher A15-1 (-SL) - Body ground Always 1 MΩ or higher Result
Proceed to OK NG Post-procedure1
- None
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 6
- None
- CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT TO +B IN THE CIRCUIT)
Pre-procedure1
- Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
*1 Front Airbag Sensor LH *2 Airbag ECU Assembly *3 Wire Harness *a Front view of wire harness connector
(to Front Airbag Sensor LH)*b Front view of wire harness connector
(to Airbag ECU Assembly) - Turn the power switch on (IG).
Procedure1
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Switch Condition Specified Condition A15-2 (+SL) - Body ground Power switch on (IG) Below 1 V A15-1 (-SL) - Body ground Power switch on (IG) Below 1 V Result
Proceed to OK NG Pre-procedure1
- Turn the power switch off.
- Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 7
- Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
- CHECK FRONT AIRBAG SENSOR LH
- Connect the G11 airbag ECU assembly connector.
*1 Front Airbag Sensor RH *2 Airbag ECU Assembly *3 Wire Harness - Interchange the front airbag sensor LH with RH and connect the connectors.
- Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
- Turn the power switch on (IG), and wait for at least 60 seconds.
- Clear the DTCs stored in memory.
Body Electrical > SRS Airbag > Clear DTCs
Result
Proceed to NEXT
Result:
NEXT
See step 8
- Connect the G11 airbag ECU assembly connector.
- CHECK FRONT AIRBAG SENSOR LH
Pre-procedure1
- Turn the power switch off.
- Turn the power switch on (IG), and wait for at least 60 seconds.
Procedure1
- Check for DTCs.
Body Electrical > SRS Airbag > Trouble Codes
Result
Result Proceed to B0090-87 is output A B0095-87 is output B B0090-87 and B0095-87 are not output C Post-procedure1
- Turn the power switch off.
- Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
- Return the front airbag sensor RH and LH to their original positions and connect the connectors.
Result:
A
REPLACE AIRBAG ECU ASSEMBLY. Refer to REMOVAL [11/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023]
Result:
B
REPLACE FRONT AIRBAG SENSOR LH. Refer to REMOVAL [11/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023]
Result:
C
USE SIMULATION METHOD TO CHECK. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [11/2021 - 10/2022] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [10/2022 - 10/2023]
