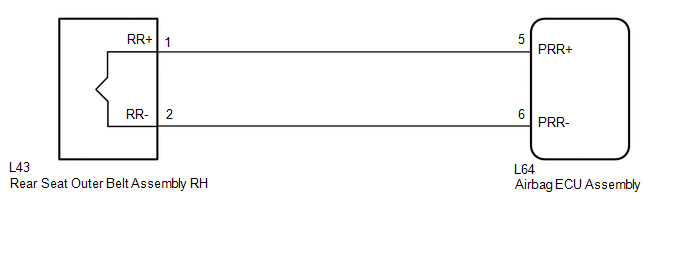

DTC B0075-13: Second Row Right Seat Belt Pretensioner Deployment Control Circuit Open [11/2021 - 10/2023]: Wiring Diagram

GTY1086658

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
