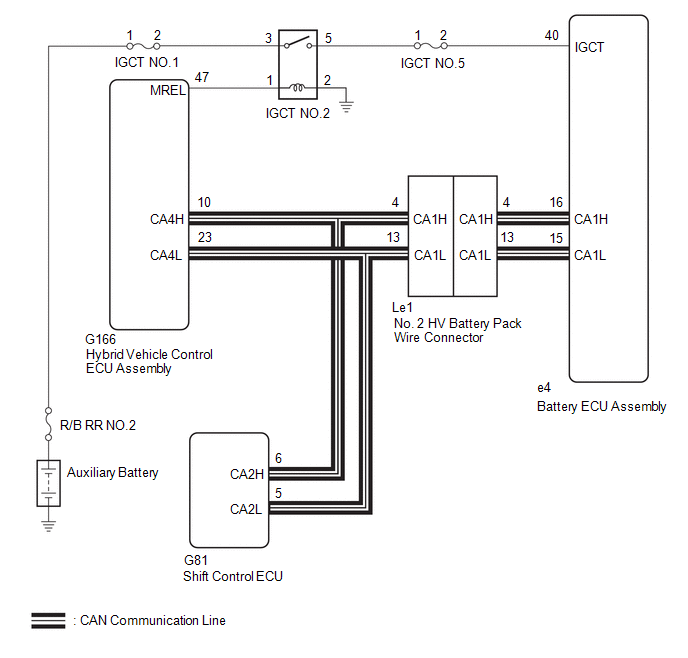

DTC U0111-87: Lost Communication with Hybrid/EV Battery Energy Control Module "A" Missing Message [11/2021 - 10/2023]: Wiring Diagram
Refer to the wiring diagram for the ECU Power Source Circuit.
Refer to WIRING DIAGRAM
Refer to the wiring diagram for DTC P0560-14.
Refer to WIRING DIAGRAM
