DTC P2807-13: Pressure Control Solenoid "G" Circuit Open [11/2021 - 10/2023]: Procedure

1. Disconnect the A106 hybrid vehicle control ECU assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to Hybrid Vehicle Control ECU Assembly)

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A106-6 (SL4+) - A106-5 (SL4-)	20°C (68°F)	5.0 to 5.6 Ω
   A106-6 (SL4+) or A106-5 (SL4-) - Body ground	power switch off	10 kΩ or higher

3. Reconnect the A106 hybrid vehicle control ECU assembly connector.

   Result

   Proceed to
   OK
   NG

Result:

OK

CHECK HYBRID VEHICLE CONTROL ECU ASSEMBLY. Refer to  REMOVAL [11/2021 - 10/2022]  , or refer to  REMOVAL [10/2022 - 10/2023]

Result:

NG

See step  2

1. Disconnect the D8 transmission wire connector.
2. Disconnect the A106 hybrid vehicle control ECU assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   D8-3 (SL4+) - A106-6 (SL4+)	Power switch off	Below 1 Ω
   D8-10 (SL4-) - A106-5 (SL4-)	Power switch off	Below 1 Ω
   D8-3 (SL4+) or A106-6 (SL4+) - Body ground	Power switch off	10 kΩ or higher
   D8-10 (SL4-) or A106-5 (SL4-) - Body ground	Power switch off	10 kΩ or higher

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

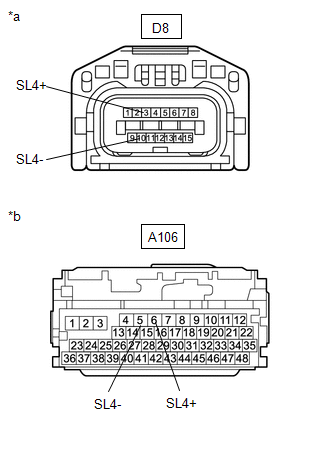

   *a	Front view of wire harness connector (to Transmission Wire)
   *b	Front view of wire harness connector (to Hybrid Vehicle Control ECU Assembly)

4. Reconnect the A106 hybrid vehicle control ECU assembly connector.
5. Reconnect the D8 transmission wire connector.

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (TRANSMISSION WIRE - ECM)

Result:

OK

See step  3

1. Remove the solenoid (SL4) valve.

   Refer to DISASSEMBLY [10/2017 - ]

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Component without harness connected (Solenoid (SL4) Valve)

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   Terminal 1 of the solenoid (SL4) valve - terminal 2	20°C (68°F)	5.0 to 5.6 Ω

3. Connect a positive (+) lead from the battery with a 21 W bulb to terminal 2 and a negative (-) lead to terminal 1 of the solenoid valve connector. Check that the valve moves and makes an operating sound.

   OK

   Valve moves and makes an operating sound.

4. Install the solenoid (SL4) valve.

   Result

   Proceed to
   OK
   NG

Result:

OK

REPAIR OR REPLACE TRANSMISSION WIRE. Refer to  REMOVAL [10/2017 - ]

Result:

NG

REPLACE SOLENOID (SL4) VALVE. Refer to  DISASSEMBLY [10/2017 - ]
