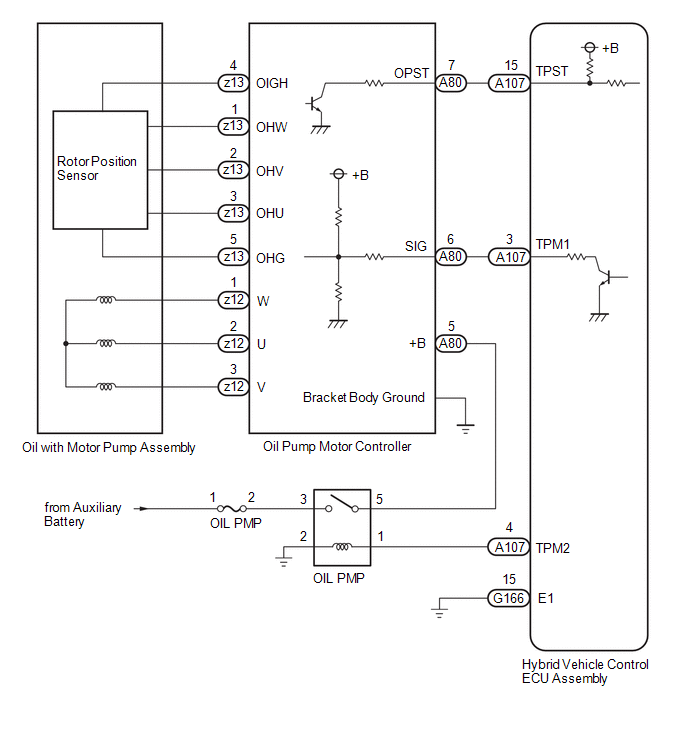

DTC P0C29-96: Auxiliary Transmission Fluid Pump Driver Circuit Component Internal Failure [11/2021 - 10/2023]: Wiring Diagram

GTY1087131

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
