DTC C0506-12: Right Front Wheel Speed Sensor Circuit Short to Battery [11/2021 - 10/2023]: Wiring Diagram

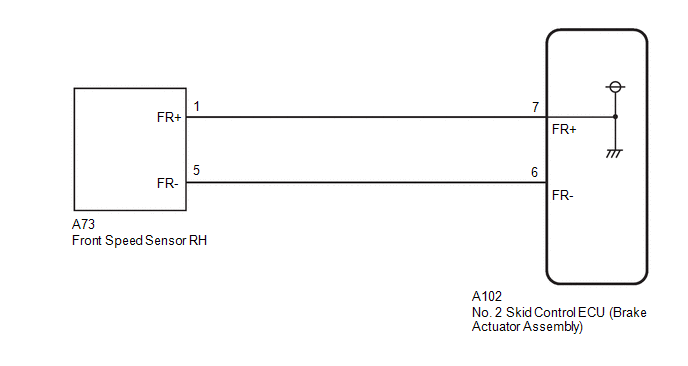

GTY1087040

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
