Rear Air Massage Function does not Operate [10/2017 - ]: Wiring Diagram

RH Seat:

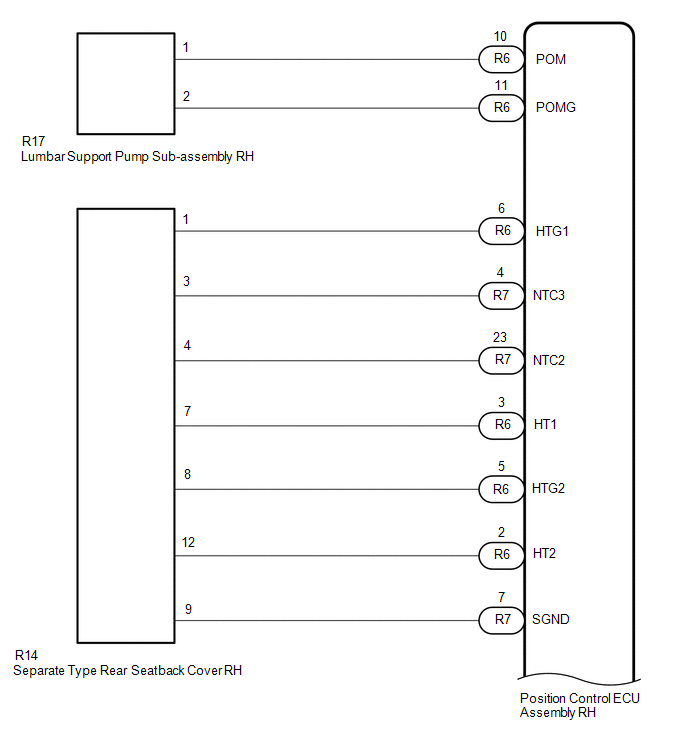

GTY785905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

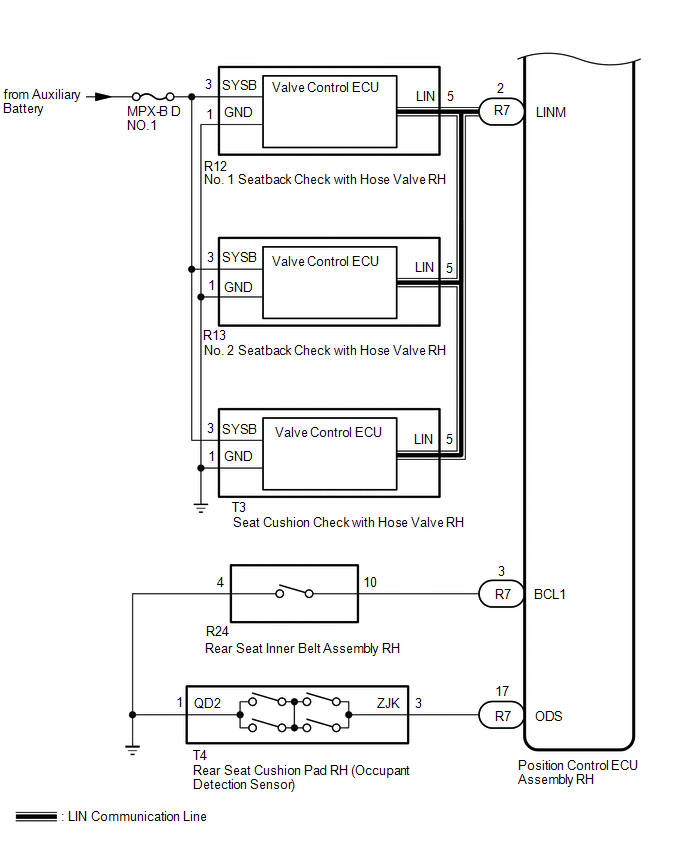

GTY812607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

LH Seat:

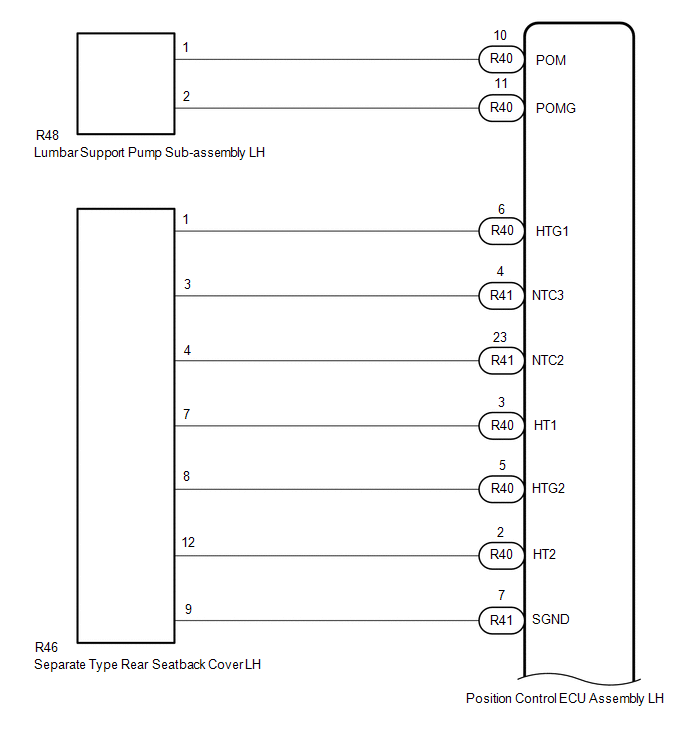

GTY829639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

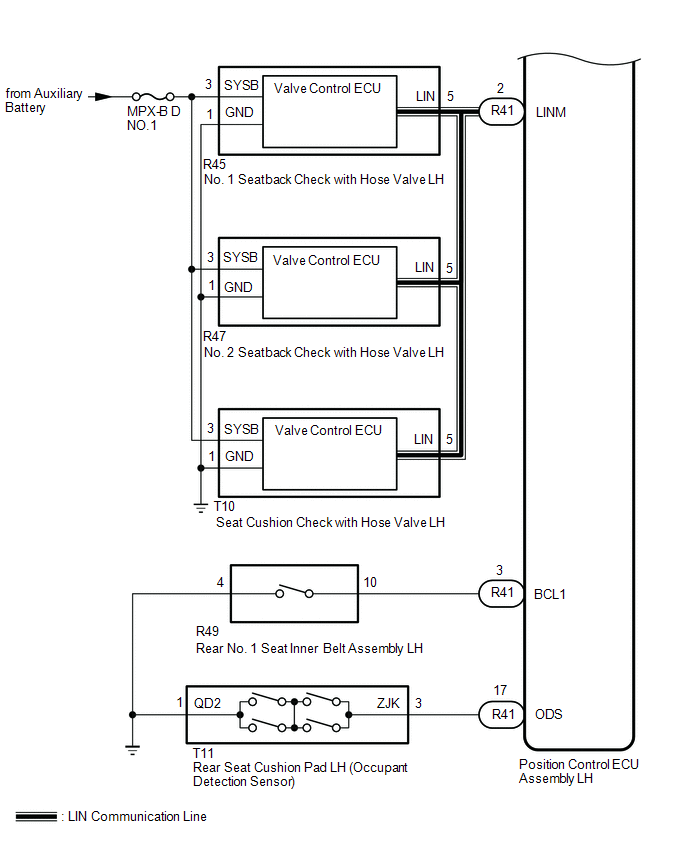

GTY812606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
