Front Air Massage Function does not Operate [10/2017 - 10/2023]: Wiring Diagram

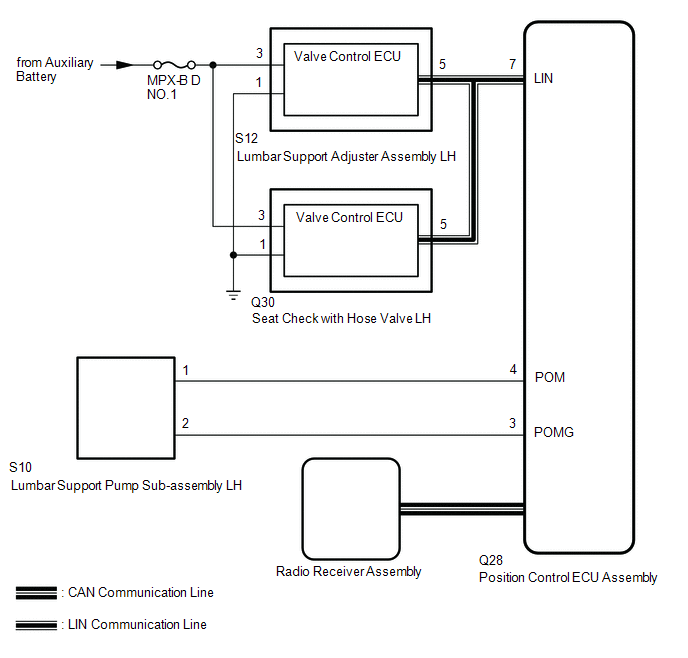

  1. for Driver Seat:
    GTY798763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

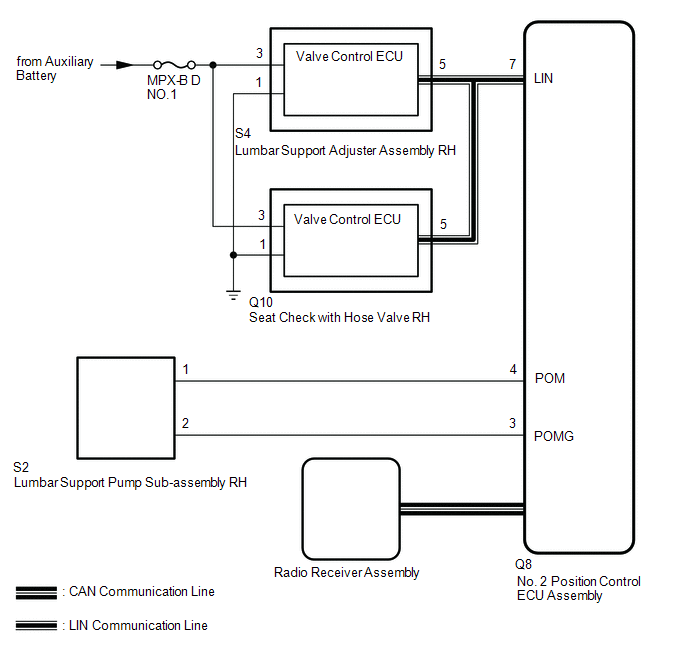

  2. for Front Passenger Seat:
    GTY798784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
