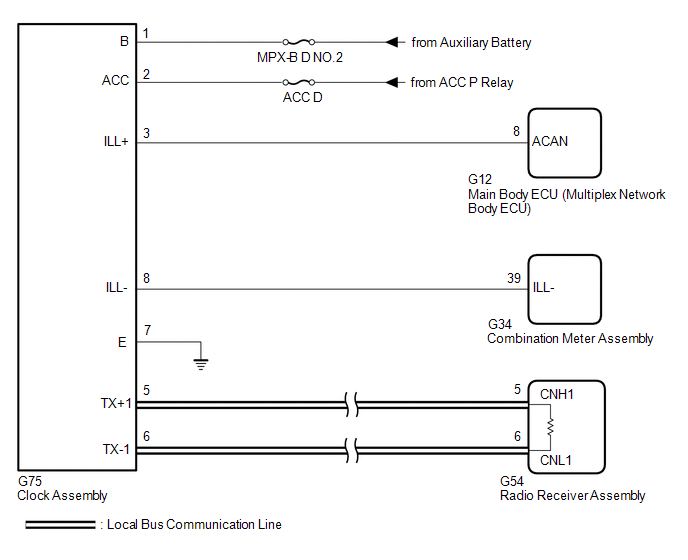

Home >> Lexus >> 2022 >> LS 500h RWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Clock System - Diagnostics & Symptom Tests >> Clock System >> System Diagram [10/2017 - 10/2020] >> System Diagram [10/2017 - 10/2020]
