DTC B1850: Short in Rear Side Squib RH Circuit; DTC B1851: Open in Rear Side Squib RH Circuit; DTC B1852: Short to GND in Rear Side Squib RH Circuit; DTC B1853: Short to B+ in Rear Side Squib RH Circuit [10/2020 - 10/2023]: Wiring Diagram

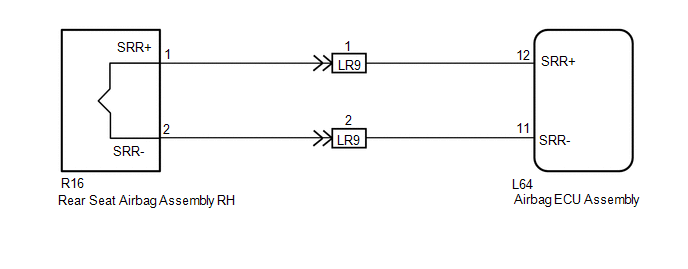

for Fixed Seat Type:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

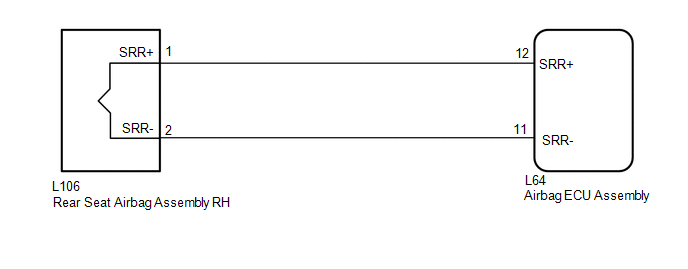

for Power Seat:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
