DTC B1825: Short in Side Squib LH Circuit; DTC B1826: Open in Side Squib LH Circuit; DTC B1827: Short in Side Squib LH Circuit (To Ground); DTC B1828: Short in Side Squib LH Circuit (To B+) [10/2020 - 10/2023]: Wiring Diagram

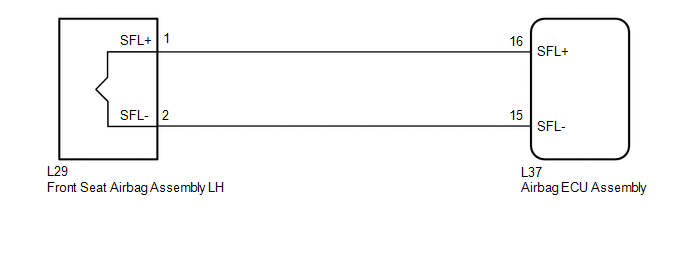

GTY809236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
