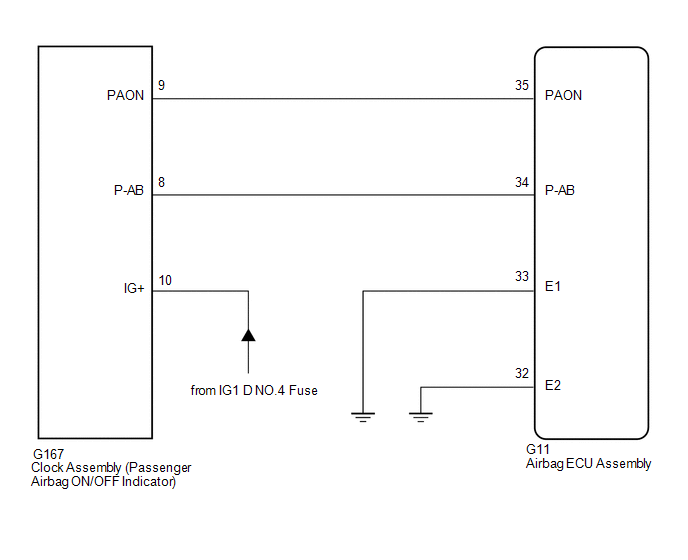

DTC B1660: P Seat Airbag Active Mode Indicator [10/2020 - 10/2023]: Wiring Diagram

GTY968188

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
