DTC B165B: 2nd Seat Seat Belt Buckle Switch (RH) [10/2020 - 10/2023]: Wiring Diagram

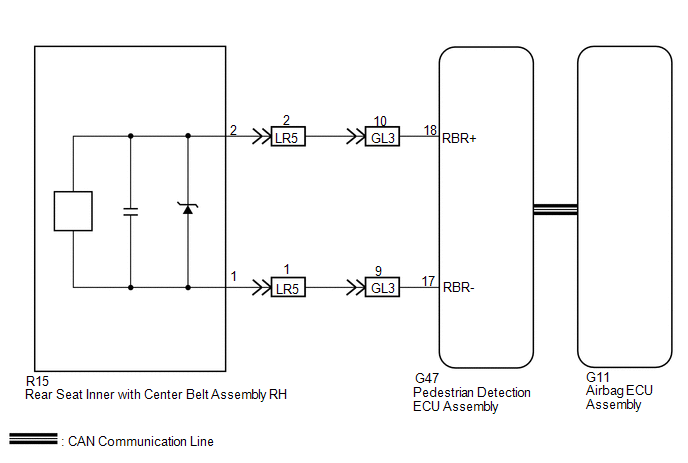

for Fixed Seat Type:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

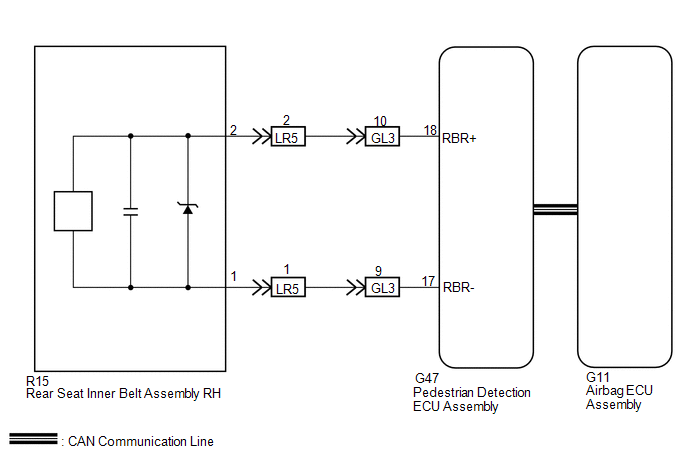

for Power Seat:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
