DTC B1647: Side Satellite Sensor Bus Lost Communication (LH); DTC B1648: Side Satellite Sensor Bus Initialization Error (LH) [10/2020 - 11/2021]: Procedure

  1. CHECK DTC
    1. Turn the power switch off.
    2. Turn the power switch on (IG), and wait for at least 60 seconds.
    3. Check for DTCs.

      Refer to DTC CHECK / CLEAR [10/2020 - 10/2023]

      Body Electrical > SRS Airbag > Trouble Codes

      Result

      Proceed to
      DTC B1647 or B1648 is output
      DTC B1647 and B1648 are not output

      HINT:

      Codes other than DTC B1647 and B1648 may be output at this time, but they are not related to this check.

    Result:

    DTC B1647 and B1648 are not output

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [10/2020 - 11/2021]

    Result:

    DTC B1647 or B1648 is output

    See step  2

  2. CHECK CONNECTION OF CONNECTORS
    1. Turn the power switch off.
    2. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
    3. Check that the connectors are properly connected to the airbag ECU assembly and rear airbag sensor LH.

      Result

      Proceed to
      The connectors are properly connected
      The connectors are not properly connected

    Result:

    The connectors are not properly connected

    CONNECT CONNECTORS PROPERLY

    Result:

    The connectors are properly connected

    See step  3

  3. CHECK CONNECTORS
    1. Disconnect the connectors from the airbag ECU assembly and rear airbag sensor LH.
    2. Check that the connectors (on the airbag ECU assembly side and rear airbag sensor LH side) are not damaged.
      GTY750510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Airbag Sensor LH
      *2 Airbag ECU Assembly
      *3 Floor Wire

      Result

      Proceed to
      The connectors are not deformed or damaged
      The connectors are deformed or damaged

    Result:

    The connectors are deformed or damaged

    REPLACE FLOOR WIRE

    Result:

    The connectors are not deformed or damaged

    See step  4

  4. CHECK FLOOR WIRE
    1. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.

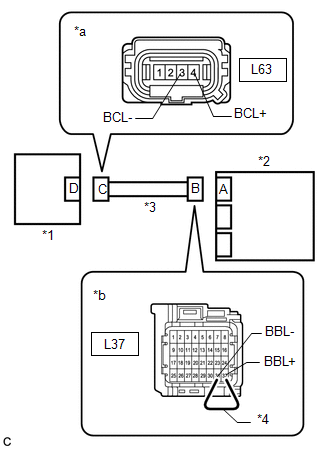

      GTY812322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Airbag Sensor LH
      *2 Airbag ECU Assembly
      *3 Floor Wire
      *4 Service Wire
      *a Front view of wire harness connector
      (to Rear Airbag Sensor LH)
      *b Front view of wire harness connector
      (to Airbag ECU Assembly)
    2. Turn the power switch on (IG).
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      L63-4 (BCL+) - Body ground Power switch on (IG) Below 1 V
      L63-3 (BCL-) - Body ground Power switch on (IG) Below 1 V
    4. Turn the power switch off.
    5. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
    6. Using a service wire, connect terminals 32 (BBL+) and 31 (BBL-) of connector B.
      NOTE:

      Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

    7. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      L63-4 (BCL+) - L63-3 (BCL-) Always Below 1 Ω
    8. Disconnect the service wire from connector B.
    9. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      L63-4 (BCL+) - L63-3 (BCL-) Always 1 MΩ or higher
      L63-4 (BCL+) - Body ground Always 1 MΩ or higher
      L63-3 (BCL-) - Body ground Always 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE FLOOR WIRE

    Result:

    OK

    See step  5

  5. CHECK REAR AIRBAG SENSOR LH
    1. Connect the connector to the airbag ECU assembly.
      GTY795370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Airbag Sensor RH
      *2 Airbag ECU Assembly
    2. Interchange the rear airbag sensor LH with RH and connect the connectors to them.
    3. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
    4. Turn the power switch on (IG), and wait for at least 60 seconds.
    5. Clear the DTCs stored in memory.

      Refer to DTC CHECK / CLEAR [10/2020 - 10/2023]

      Body Electrical > SRS Airbag > Clear DTCs

    6. Turn the power switch off.
    7. Turn the power switch on (IG), and wait for at least 60 seconds.
    8. Check for DTCs.

      Refer to DTC CHECK / CLEAR [10/2020 - 10/2023]

      Body Electrical > SRS Airbag > Trouble Codes

      Result

      Proceed to
      DTC B1642 or B1643 is output
      DTC B1647 or B1648 is output
      DTC B1642, B1643, B1647 and B1648 are not output

      HINT:

      Codes other than DTC B1642, B1643, B1647 and B1648 may be output at this time, but they are not related to this check.

    9. Turn the power switch off.
    10. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
    11. Return the rear airbag sensor RH and LH to their original positions and connect the connectors to them.

    Result:

    DTC B1642 or B1643 is output

    REPLACE REAR AIRBAG SENSOR LH. Refer to  REMOVAL [10/2020 - 11/2021]

    Result:

    DTC B1642, B1643, B1647 and B1648 are not output

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [10/2020 - 11/2021]

    Result:

    DTC B1647 or B1648 is output

    See step  6

  6. CHECK CONNECTION OF CONNECTOR
    1. Check that the connector is properly connected to the side airbag sensor assembly LH.

      Result

      Proceed to
      The connector is properly connected
      The connector is not properly connected

    Result:

    The connector is not properly connected

    CONNECT CONNECTOR PROPERLY

    Result:

    The connector is properly connected

    See step  7

  7. CHECK CONNECTOR
    1. Disconnect the connectors from the side airbag sensor assembly LH and rear airbag sensor LH.
    2. Check that the connector (on the side airbag sensor assembly LH side) is not damaged.
      GTY832782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Side Airbag Sensor Assembly LH
      *2 Rear Airbag Sensor LH
      *3 Floor Wire

      Result

      Proceed to
      The connector is not deformed or damaged
      The connector is deformed or damaged

    Result:

    The connector is deformed or damaged

    REPLACE FLOOR WIRE

    Result:

    The connector is not deformed or damaged

    See step  8

  8. CHECK FLOOR WIRE
    1. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.

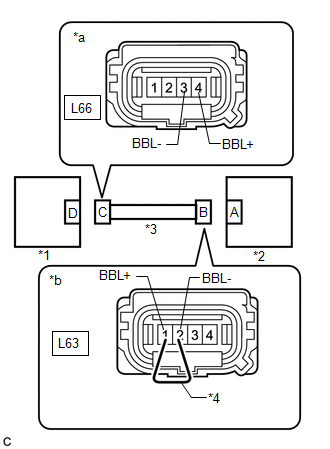

      GTY778444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Side Airbag Sensor Assembly LH
      *2 Rear Airbag Sensor LH
      *3 Floor Wire
      *4 Service Wire
      *a Front view of wire harness connector
      (to Side Airbag Sensor Assembly LH)
      *b Front view of wire harness connector
      (to Rear Airbag Sensor LH)
    2. Turn the power switch on (IG).
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      L66-4 (BBL+) - Body ground Power switch on (IG) Below 1 V
      L66-3 (BBL-) - Body ground Power switch on (IG) Below 1 V
    4. Turn the power switch off.
    5. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
    6. Using a service wire, connect terminals 1 (BBL+) and 2 (BBL-) of connector B.
      NOTE:

      Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

    7. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      L66-4 (BBL+) - L66-3 (BBL-) Always Below 1 Ω
    8. Disconnect the service wire from connector B.
    9. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      L66-4 (BBL+) - L66-3 (BBL-) Always 1 MΩ or higher
      L66-4 (BBL+) - Body ground Always 1 MΩ or higher
      L66-3 (BBL-) - Body ground Always 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE FLOOR WIRE

    Result:

    OK

    See step  9

  9. CHECK SIDE AIRBAG SENSOR ASSEMBLY LH
    1. Connect the connector to the rear airbag sensor LH.
      GTY810198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Side Airbag Sensor Assembly RH
      *2 Rear Airbag Sensor LH
    2. Interchange the side airbag sensor assembly LH with RH and connect the connectors to them.
    3. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
    4. Turn the power switch on (IG), and wait for at least 60 seconds.
    5. Clear the DTCs stored.

      Refer to DTC CHECK / CLEAR [10/2020 - 10/2023]

      Body Electrical > SRS Airbag > Clear DTCs

    6. Turn the power switch off.
    7. Turn the power switch on (IG), and wait for at least 60 seconds.
    8. Check for DTCs.

      Refer to DTC CHECK / CLEAR [10/2020 - 10/2023]

      Body Electrical > SRS Airbag > Trouble Codes

      Result

      Proceed to
      DTC B1642 or B1643 is output
      DTC B1647 or B1648 is output
      DTC B1642, B1643, B1647 and B1648 are not output

      HINT:

      Codes other than DTC B1642, B1643, B1647 and B1648 may be output at this time, but they are not related to this check.

    9. Turn the power switch off.
    10. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
    11. Return the side airbag sensor assembly RH and LH to their original positions and connect the connectors to them.

    Result:

    DTC B1642 or B1643 is output

    REPLACE SIDE AIRBAG SENSOR ASSEMBLY LH. Refer to  REMOVAL [10/2020 - 11/2021]

    Result:

    DTC B1642, B1643, B1647 and B1648 are not output

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [10/2020 - 11/2021]

    Result:

    DTC B1647 or B1648 is output

    See step  10

  10. CHECK CONNECTION OF CONNECTOR
    1. Check that the connector is properly connected to the door side airbag sensor LH.

      Result

      Proceed to
      The connector is properly connected
      The connector is not properly connected

    Result:

    The connector is not properly connected

    CONNECT CONNECTOR PROPERLY

    Result:

    The connector is properly connected

    See step  11

  11. CHECK CONNECTOR
    1. Disconnect the connectors from the side airbag sensor assembly LH and door side airbag sensor LH.
    2. Check that the connector (on the door side airbag sensor LH side) is not damaged.
      GTY516347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Door Side Airbag Sensor LH
      *2 Side Airbag Sensor Assembly LH
      *3 Front Door Wire LH
      *4 Floor Wire

      Result

      Proceed to
      The connector is not deformed or damaged
      The connector is deformed or damaged

    Result:

    The connector is deformed or damaged

    REPLACE FRONT DOOR WIRE LH

    Result:

    The connector is not deformed or damaged

    See step  12

  12. CHECK DOOR SIDE AIRBAG SENSOR LH CIRCUIT
    1. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.

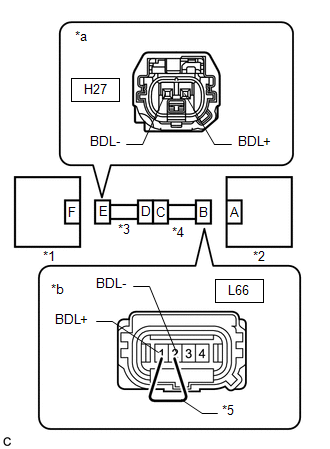

      GTY818013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Door Side Airbag Sensor LH
      *2 Side Airbag Sensor Assembly LH
      *3 Front Door Wire LH
      *4 Floor Wire
      *5 Service Wire
      *a Front view of wire harness connector
      (to Door Side Airbag Sensor LH)
      *b Front view of wire harness connector
      (to Side Airbag Sensor Assembly LH)
    2. Turn the power switch on (IG).
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      H27-2 (BDL+) - Body ground Power switch on (IG) Below 1 V
      H27-1 (BDL-) - Body ground Power switch on (IG) Below 1 V
    4. Turn the power switch off.
    5. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
    6. Using a service wire, connect terminals 1 (BDL+) and 2 (BDL-) of connector B.
      NOTE:

      Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

    7. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      H27-2 (BDL+) - H27-1 (BDL-) Always Below 1 Ω
    8. Disconnect the service wire from connector B.
    9. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      H27-2 (BDL+) - H27-1 (BDL-) Always 1 MΩ or higher
      H27-2 (BDL+) - Body ground Always 1 MΩ or higher
      H27-1 (BDL-) - Body ground Always 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  14

    Result:

    OK

    See step  13

  13. CHECK DOOR SIDE AIRBAG SENSOR LH
    1. Connect the connector to the side airbag sensor assembly LH.
      GTY801997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Door Side Airbag Sensor RH
      *2 Side Airbag Sensor Assembly LH
    2. Interchange the door side airbag sensor LH with RH and connect the connectors to them.
    3. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
    4. Turn the power switch on (IG), and wait for at least 60 seconds.
    5. Clear the DTCs stored.

      Refer to DTC CHECK / CLEAR [10/2020 - 10/2023]

      Body Electrical > SRS Airbag > Clear DTCs

    6. Turn the power switch off.
    7. Turn the power switch on (IG), and wait for at least 60 seconds.
    8. Check for DTCs.

      Refer to DTC CHECK / CLEAR [10/2020 - 10/2023]

      Body Electrical > SRS Airbag > Trouble Codes

      Result

      Proceed to
      DTC B1642 or B1643 is output
      DTC B1647 or B1648 is output
      DTC B1642, B1643, B1647 and B1648 are not output

      HINT:

      Codes other than DTC B1642, B1643, B1647 and B1648 may be output at this time, but they are not related to this check.

    9. Turn the power switch off.
    10. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
    11. Return the door side airbag sensor RH and LH to their original positions and connect the connectors to them.

    Result:

    DTC B1642 or B1643 is output

    REPLACE DOOR SIDE AIRBAG SENSOR LH. Refer to  REMOVAL [10/2020 - 11/2021]

    Result:

    DTC B1647 or B1648 is output

    REPLACE AIRBAG ECU ASSEMBLY. Refer to  REMOVAL [10/2020 - 11/2021]

    Result:

    DTC B1642, B1643, B1647 and B1648 are not output

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [10/2020 - 11/2021]

  14. CHECK FLOOR WIRE
    1. Disconnect the floor wire connector from the front door wire LH.

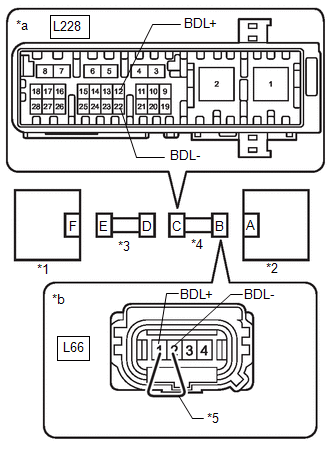

      GTY972015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Door Side Airbag Sensor LH
      *2 Side Airbag Sensor Assembly LH
      *3 Front Door Wire LH
      *4 Floor Wire
      *5 Service Wire
      *a Front view of wire harness connector
      (to Front Door Wire LH)
      *b Front view of wire harness connector
      (to Side Airbag Sensor Assembly LH)
    2. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
    3. Turn the power switch on (IG).
    4. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      L228-12 (BDL+) - Body ground Power switch on (IG) Below 1 V
      L228-22 (BDL-) - Body ground Power switch on (IG) Below 1 V
    5. Turn the power switch off.
    6. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
    7. Using a service wire, connect terminals 1 (BDL+) and 2 (BDL-) of connector B.
      NOTE:

      Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

    8. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      L228-12 (BDL+) - L228-22 (BDL-) Always Below 1 Ω
    9. Disconnect the service wire from connector B.
    10. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      L228-12 (BDL+) - L228-22 (BDL-) Always 1 MΩ or higher
      L228-12 (BDL+) - Body ground Always 1 MΩ or higher
      L228-22 (BDL-) - Body ground Always 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE FRONT DOOR WIRE LH

    Result:

    NG

    REPLACE FLOOR WIRE

scientia non olet · About LEMON Manuals
