DTC B009E-87: Right Side Restraints Sensor 5 Missing Message [11/2021 - 10/2023]: Procedure

  1. CHECK DTC

    Pre-procedure1

    1. Turn the power switch on (IG), and wait for at least 60 seconds.

      Procedure1

    2. Check for DTCs.

      Body Electrical > SRS Airbag > Trouble Codes

      Result

      Result  Proceed to
      B0098-87 and B009E-87 are output A
      B009E-87 is output B
      B0098-87 and B009E-87 are not output C

      Post-procedure1

    3. None

    Result:

    A

    GO TO DTC B0098-87. Refer to  DTC B0098-87: Right Side Restraints Sensor 3 Missing Message [11/2021 - 10/2023]

    Result:

    C

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [11/2021 - 10/2022]  , or refer to  HOW TO PROCEED WITH TROUBLESHOOTING [10/2022 - 10/2023]

    Result:

    B

    See step  2

  2. CHECK CONNECTION OF CONNECTORS

    Pre-procedure1

    1. Turn the power switch off.
    2. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.

      Procedure1

    3. Check that the connectors are properly connected to the door side airbag sensor RH and rear airbag sensor RH.

      OK

      The connectors are properly connected.

      Result

      Proceed to
      OK
      NG

      Post-procedure1

    4. None

    Result:

    NG

    CONNECT CONNECTORS PROPERLY

    Result:

    OK

    See step  3

  3. CHECK CONNECTORS

    Pre-procedure1

    1. Disconnect the rear airbag sensor RH connector.
      GTY973643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Airbag Sensor RH
      *2 Door Side Airbag Sensor RH
      *3 Wire Harness
    2. Disconnect the door side airbag sensor RH connector.

      Procedure1

    3. Check that the terminals of the connectors are not deformed or damaged.

      OK

      The terminals of the connectors are not deformed or damaged.

      Post-procedure1

    4. None

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  4

  4. CHECK HARNESS AND CONNECTOR (CHECK FOR OPEN IN THE CIRCUIT)

    Pre-procedure1

    1. Using a service wire, connect terminals 2 (BDR+) and 1 (BDR-) of connector B.

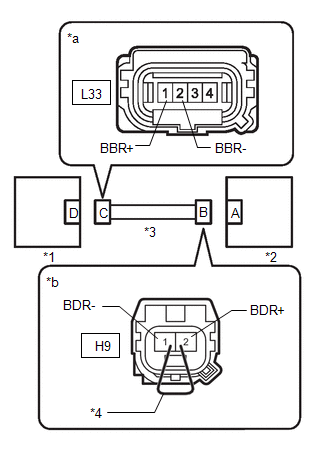

      GTY1086826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Airbag Sensor RH
      *2 Door Side Airbag Sensor RH
      *3 Wire Harness
      *4 Service Wire
      *a Front view of wire harness connector
      (to Rear Airbag Sensor RH)
      *b Front view of wire harness connector
      (to Door Side Airbag Sensor RH)
      NOTE:

      Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

      Procedure1

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      L33-1 (BBR+) - L33-2 (BBR-) Always Below 1 Ω
    3. Disconnect the service wire from connector B.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  5

  5. CHECK DOOR SIDE AIRBAG SENSOR RH
    1. Connect the L39 rear airbag sensor RH connector.
      GTY1006161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Airbag Sensor RH
      *2 Door Side Airbag Sensor LH
      *3 Wire Harness
    2. Interchange the door side airbag sensor RH with LH and connect the connectors.
    3. Connect the cable to the negative (-) auxiliary battery terminal.
    4. Turn the power switch on (IG), and wait for at least 60 seconds.
    5. Clear the DTCs stored in memory.

      Body Electrical > SRS Airbag > Clear DTCs

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  6

  6. CHECK DOOR SIDE AIRBAG SENSOR RH

    Pre-procedure1

    1. Turn the power switch off.
    2. Turn the power switch on (IG), and wait for at least 60 seconds.

      Procedure1

    3. Check for DTCs.

      Body Electrical > SRS Airbag > Trouble Codes

      Result

      Result  Proceed to
      B009E-87 is output A
      B009B-87 is output B
      B009B-87 and B009E-87 are not output C

      Post-procedure1

    4. Turn the power switch off.
    5. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
    6. Return the door side airbag sensor RH and LH to their original positions and connect the connectors.

    Result:

    A

    REPLACE AIRBAG ECU ASSEMBLY. Refer to  REMOVAL [11/2021 - 10/2022]  , or refer to  REMOVAL [10/2022 - 10/2023]

    Result:

    B

    REPLACE DOOR SIDE AIRBAG SENSOR RH. Refer to  REMOVAL [11/2021 - 10/2022]  , or refer to  REMOVAL [10/2022 - 10/2023]

    Result:

    C

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [11/2021 - 10/2022]  , or refer to  HOW TO PROCEED WITH TROUBLESHOOTING [10/2022 - 10/2023]
