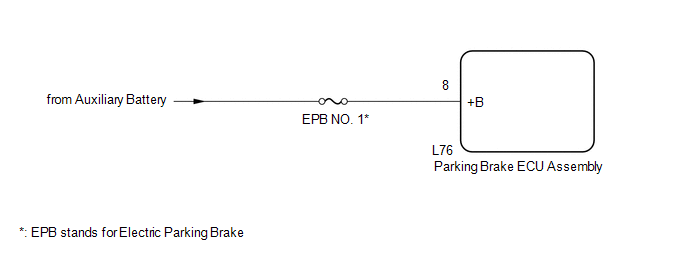

DTC C13AD: Open in +B Circuit [10/2020 - 10/2023]: Wiring Diagram

GTY814543

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
