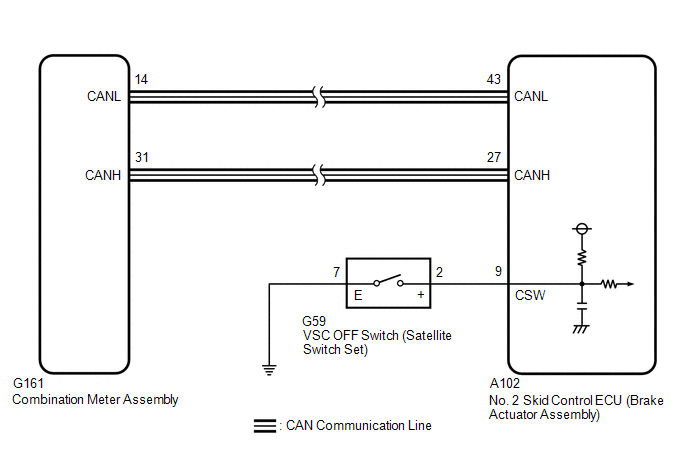

VSC OFF Switch Circuit [11/2021 - 10/2023]: Wiring Diagram

GTY1086689

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
