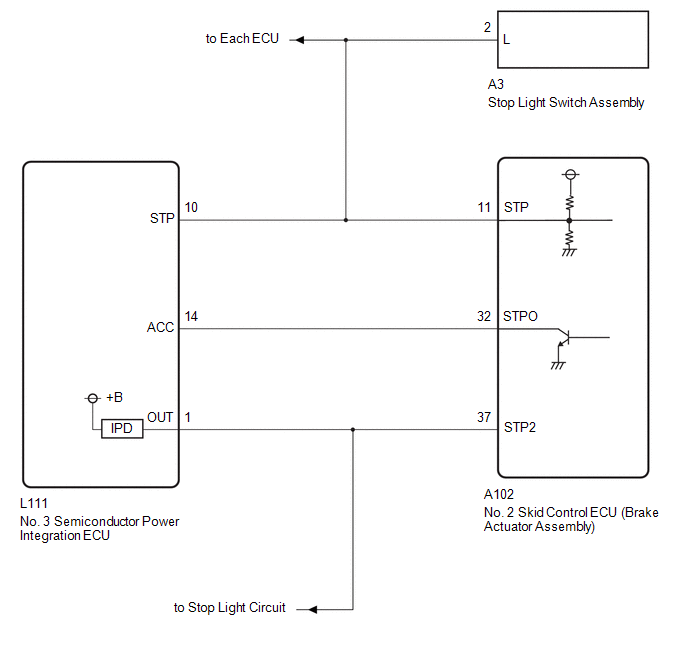

DTC C1380-7E: Stop Lamp Relay Actuator Stuck On [11/2021 - 10/2023]: Wiring Diagram

GTY1086552

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
