Components [10/2020 - 10/2022]

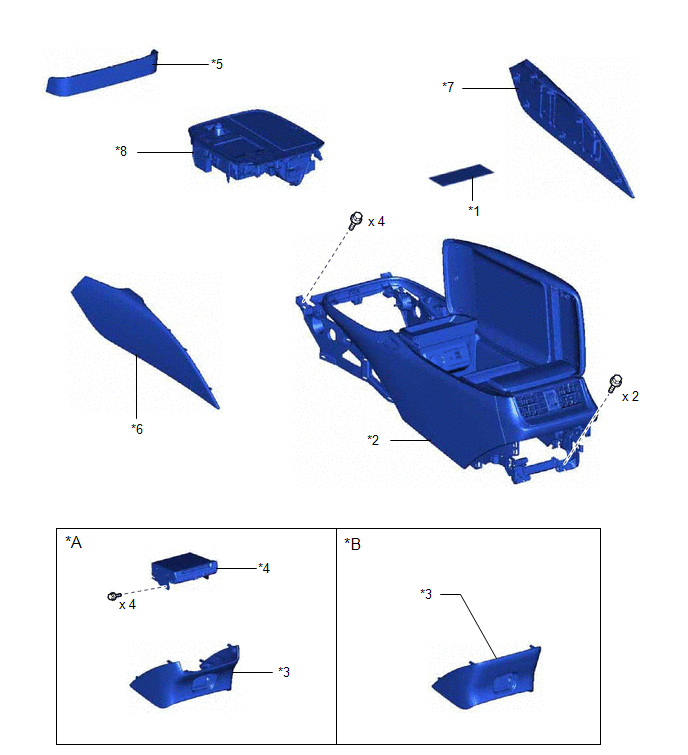

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Disc Player | *B | w/o Disc Player |
| *1 | BOX BOTTOM MAT | *2 | CONSOLE BOX ASSEMBLY |
| *3 | CONSOLE REAR END PANEL SUB-ASSEMBLY | *4 | DISC PLAYER ASSEMBLY WITH BRACKET |
| *5 | LOWER CENTER INSTRUMENT PANEL FINISH PANEL | *6 | NO. 1 CONSOLE UPPER PANEL GARNISH |
| *7 | NO. 2 CONSOLE UPPER PANEL GARNISH | *8 | UPPER CONSOLE PANEL ASSEMBLY |

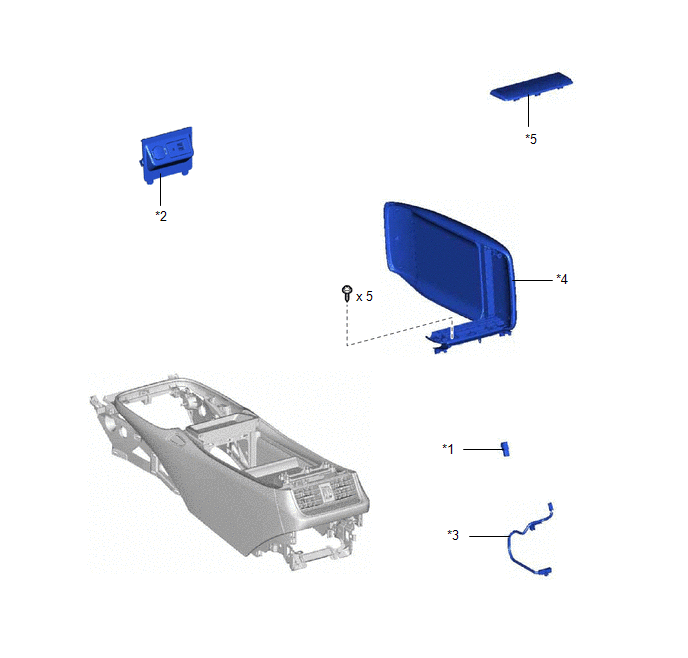

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY | *2 | CONSOLE BOX PLATE |
| *3 | CONSOLE BOX WIRE | *4 | REAR CONSOLE ARMREST ASSEMBLY |
| *5 | UPPER NO. 2 BOX PLATE | - | - |

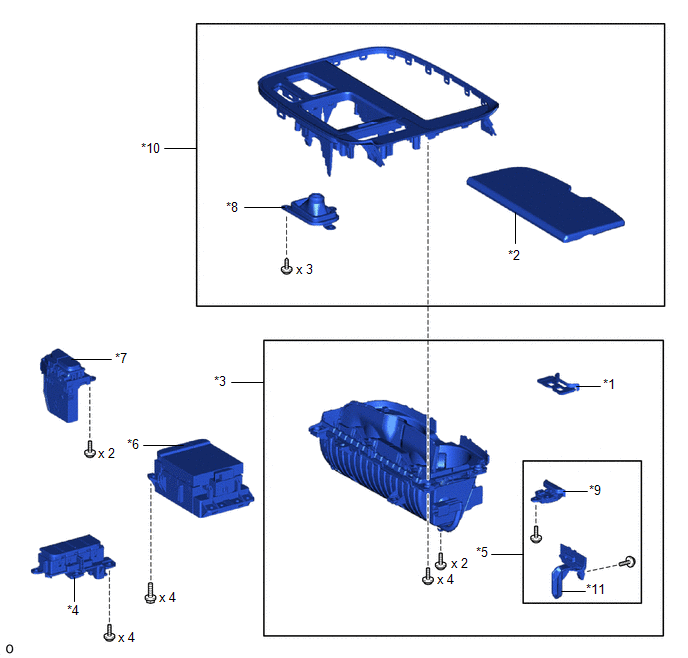

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BEZEL | *2 | INSTRUMENT PANEL CUP HOLDER DOOR |
| *3 | INSTRUMENT PANEL CUP HOLDER SUB-ASSEMBLY | *4 | INTEGRATION CONTROL AND PANEL ASSEMBLY |
| *5 | NO. 1 INSTRUMENT PANEL CUP HOLDER LOCK | *6 | REMOTE OPERATION CONTROLLER ASSEMBLY |
| *7 | SHIFT POSITION INDICATOR | *8 | SHIFTING HOLE COVER SUB-ASSEMBLY |
| *9 | NO. 3 INSTRUMENT PANEL CUP HOLDER LOCK | *10 | UPPER CONSOLE PANEL SUB-ASSEMBLY |
| *11 | MOUNTING BRACKET | - | - |
