System Diagram [10/2023 - ]

  1. Combination Meter Assembly Circuit (w/ Front LiDAR Sensor)

    HINT:

    Inspect the communication function by CAN communication system.

    Refer to SYSTEM DIAGRAM [10/2023 - ]

    GTY1087598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

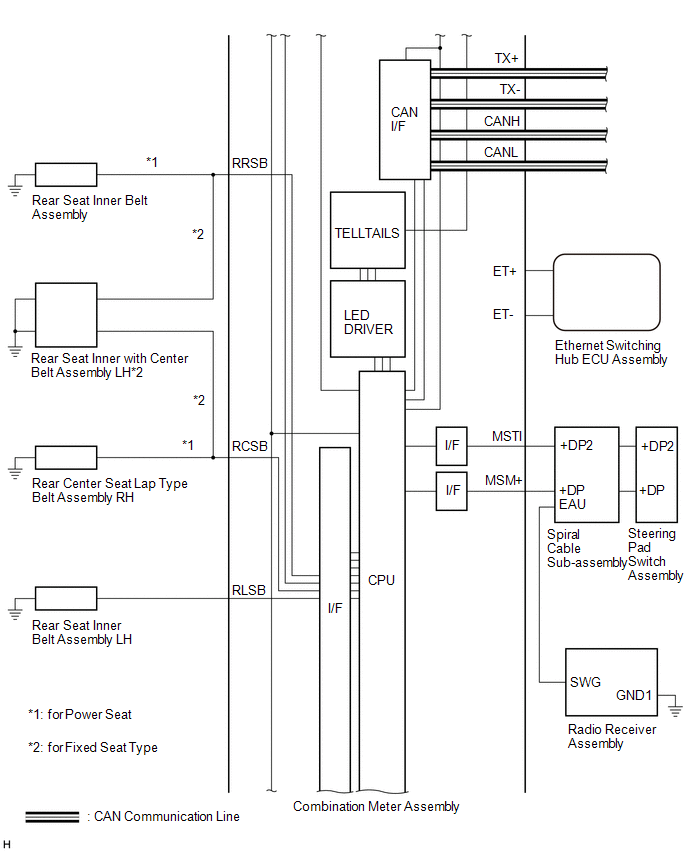

    GTY1239486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

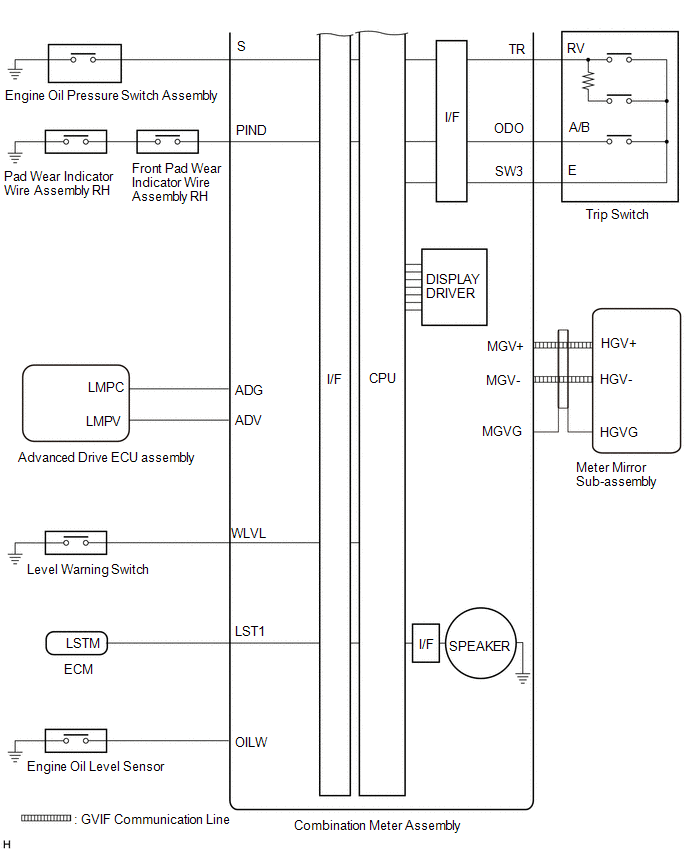

    GTY1233664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Combination Meter Assembly Circuit (w/o Front LiDAR Sensor)

    HINT:

    Inspect the communication function by CAN communication system.

    Refer to SYSTEM DIAGRAM [10/2023 - ]

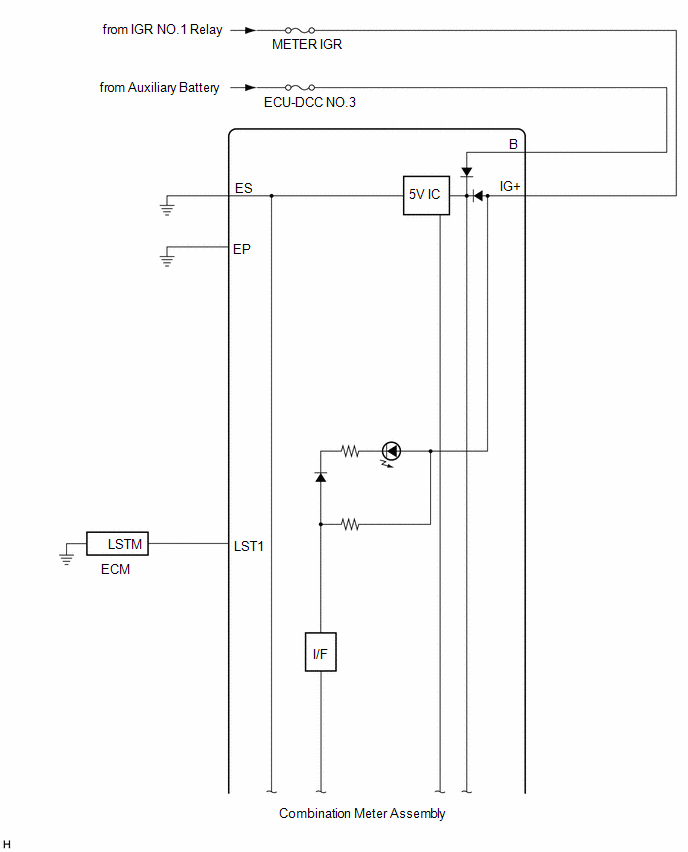

    GTY1234074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

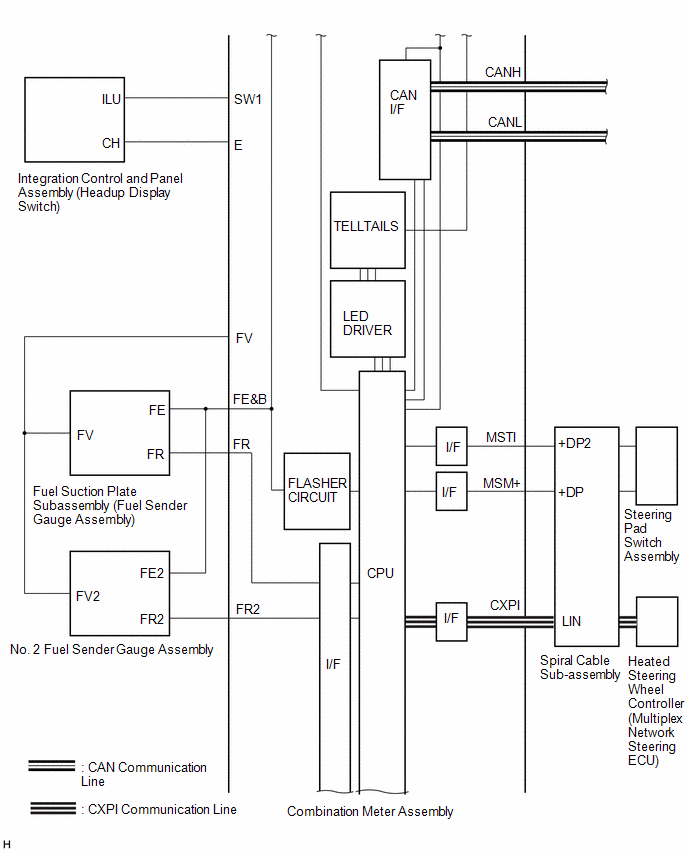

    GTY1237303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

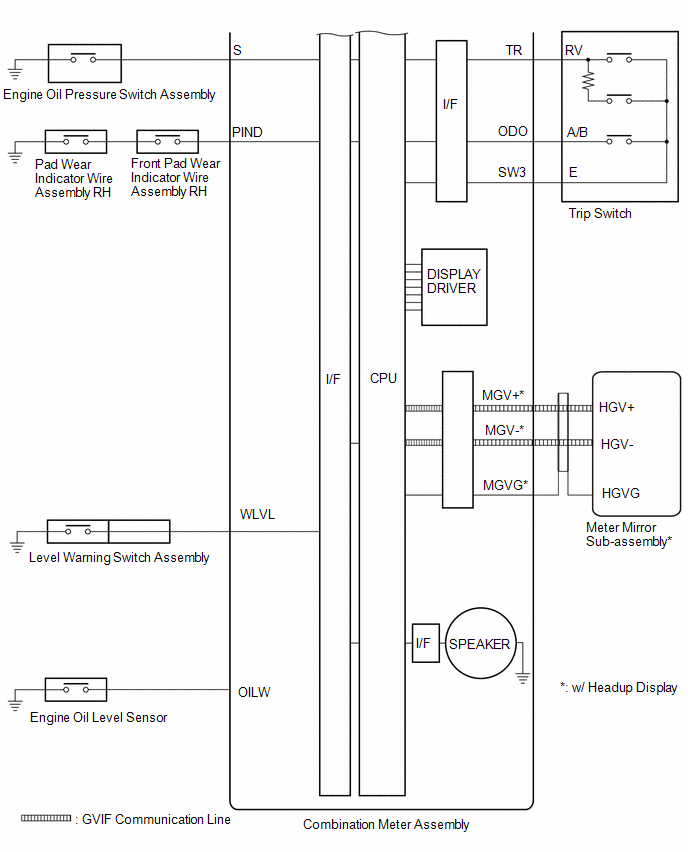

    GTY1227884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

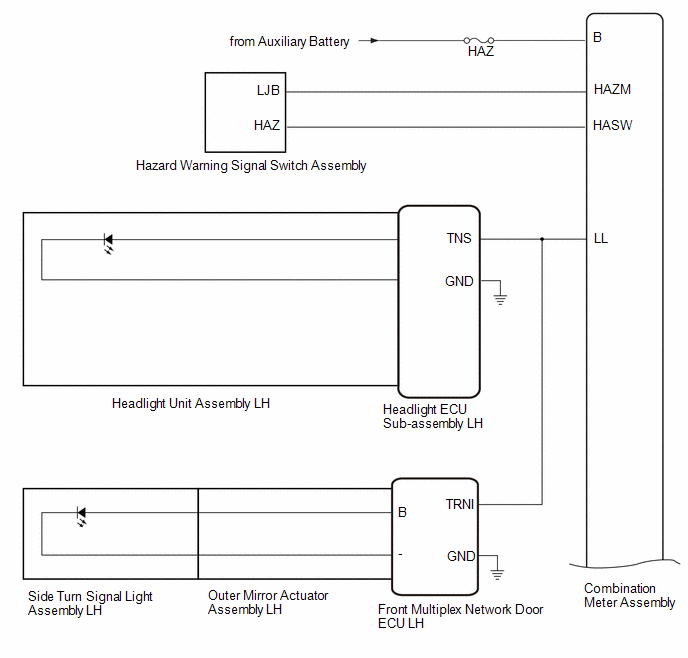

  3. Turn Signal Light Circuit
    GTY1240662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

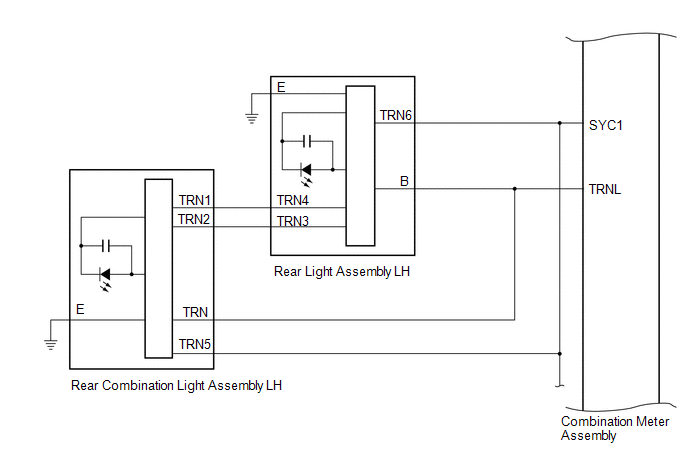

    GTY1228539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

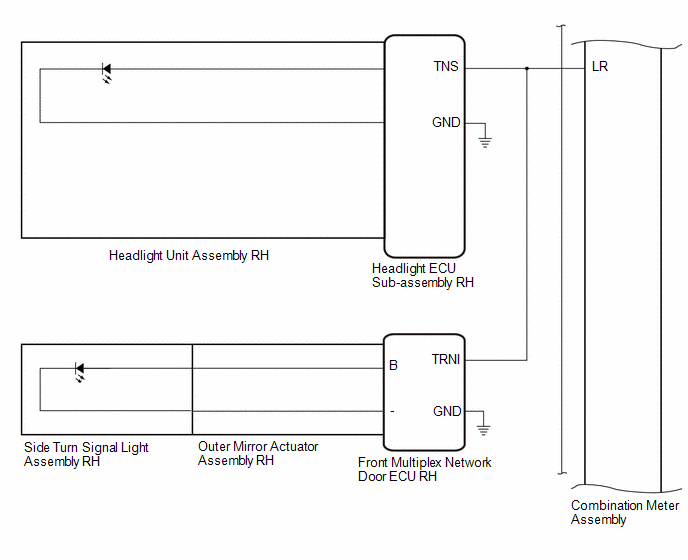

    GTY1232114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY1231359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Speed Signal Circuit (w/ Front LiDAR Sensor)

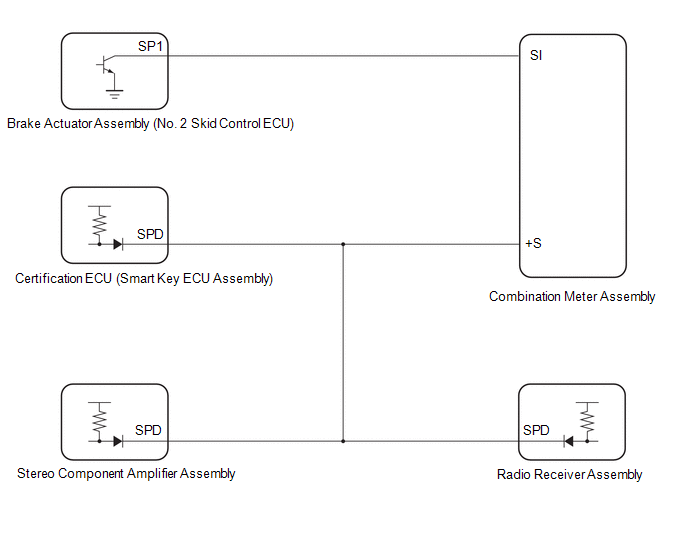

    GTY1241047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. Speed Signal Circuit (w/o Front LiDAR Sensor)
    GTY1239489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
