Components [10/2023 - ]

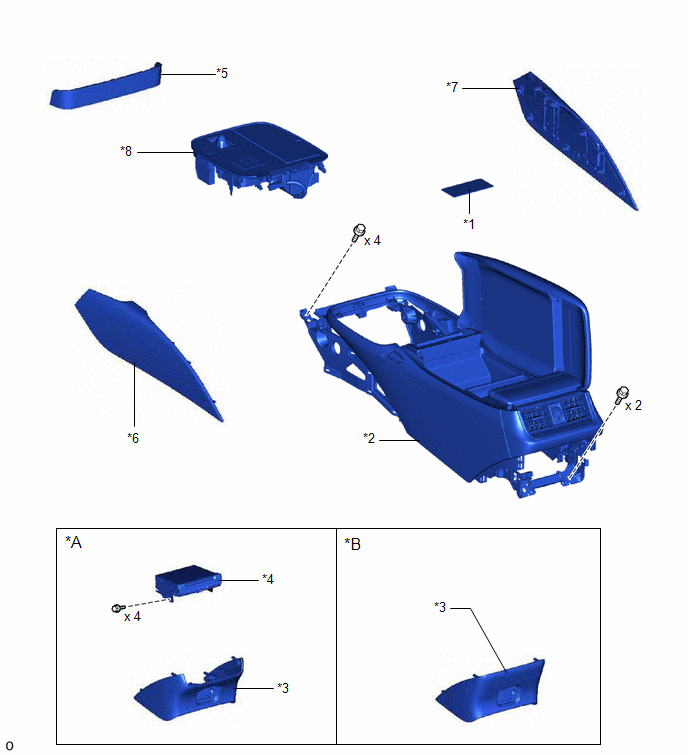

Fig 1: Front Console Box Replacement Components [10/2023 - ] (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Disc Player	*B	w/o Disc Player
*1	BOX BOTTOM MAT	*2	CONSOLE BOX ASSEMBLY
*3	CONSOLE REAR END PANEL SUB-ASSEMBLY	*4	DISC PLAYER ASSEMBLY WITH BRACKET
*5	LOWER CENTER INSTRUMENT PANEL FINISH PANEL	*6	NO. 1 CONSOLE UPPER PANEL GARNISH
*7	NO. 2 CONSOLE UPPER PANEL GARNISH	*8	UPPER CONSOLE PANEL ASSEMBLY

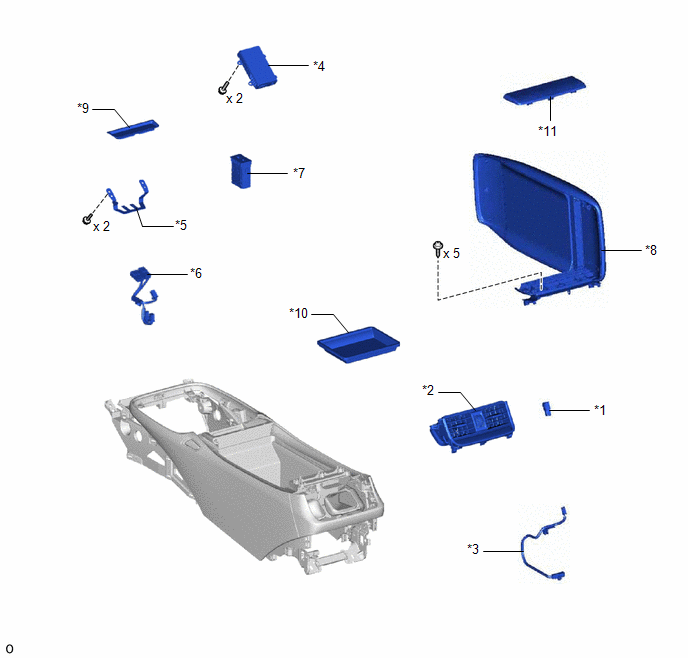

Fig 2: Front Console Box Replacement Components [10/2023 - ] (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY	*2	CONSOLE BOX REGISTER ASSEMBLY
*3	CONSOLE BOX WIRE	*4	MOBILE WIRELESS CHARGER CRADLE ASSEMBLY
*5	NO. 1 RADIO BRACKET	*6	NO. 1 STEREO COMPONENT WIRE
*7	NO. 1 STEREO JACK ADAPTER ASSEMBLY	*8	REAR CONSOLE ARMREST ASSEMBLY
*9	UPPER CONSOLE BOX	*10	UPPER CONSOLE BOX
*11	UPPER NO. 2 BOX PLATE	-	-

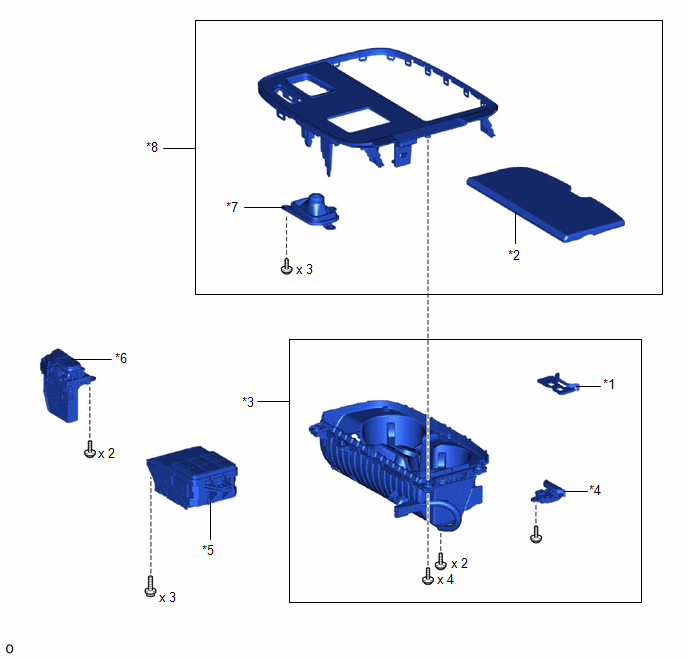

Fig 3: Front Console Box Replacement Components [10/2023 - ] (3 Of 3)

*1	BEZEL	*2	INSTRUMENT PANEL CUP HOLDER DOOR
*3	INSTRUMENT PANEL CUP HOLDER SUB-ASSEMBLY	*4	NO. 3 INSTRUMENT PANEL CUP HOLDER LOCK
*5	REFRESHING SEAT SWITCH	*6	SHIFT POSITION INDICATOR
*7	SHIFTING HOLE COVER SUB-ASSEMBLY	*8	UPPER CONSOLE PANEL SUB-ASSEMBLY
