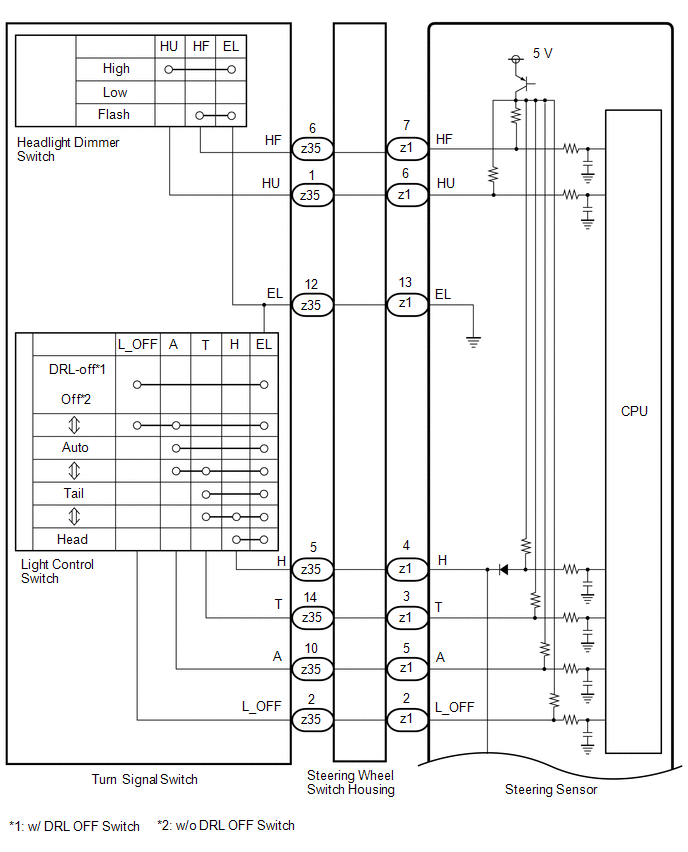

Headlight Dimmer Switch Circuit [12/2017 - 10/2020]: Wiring Diagram

GTY787972

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

GTY776329

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
