Disassembly [03/2017 - 01/2021]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP
    1. Using a screwdriver, detach the claws of the cover in the direction indicated by the arrow in the illustration.
      GTY807819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Open in this Direction

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the 2 screws and luggage compartment door assist grip.
      GTY794304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE LUGGAGE COMPARTMENT DOOR COVER
    1. Using a clip remover, remove the 10 clips and luggage compartment door cover.
      GTY794303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM BRACKET
    1. Remove the 3 screws and No. 1 luggage compartment trim bracket.
      GTY786824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE OUTER LOWER LUGGAGE COMPARTMENT DOOR PANEL

    Refer to PROCEDURE - Step 3

  5. REMOVE ACTIVE REAR WING (w/ Active Rear Wing)

    Refer to REMOVAL [03/2017 - ]

  6. REMOVE TELEVISION CAMERA ASSEMBLY

    Refer to PROCEDURE - Step 4

  7. REMOVE LUGGAGE COMPARTMENT DOOR HOUSING

    HINT:

    When removing the luggage compartment door housing, heat the luggage compartment door housing using a heat light.

    Standard

    Item Temperature
    Luggage Compartment Door Housing 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    1. Detach the adhesional surface of the double-sided tape.
      GTY784488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape
    2. Remove the luggage compartment door housing.
    3. Clean the luggage compartment door.
  8. REMOVE LUGGAGE DOOR LOCK PROTECTOR

    See step  1

  9. REMOVE LUGGAGE COMPARTMENT DOOR STRIKER ASSEMBLY

    See step  2

  10. REMOVE NO. 1 DECK BOARD
    1. Lift up the strap and remove the No. 1 deck board.

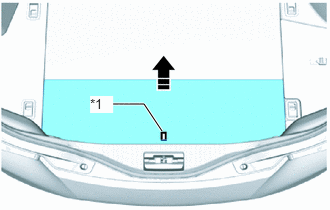

      GTY781336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Strap
      Remove in this Direction
  11. REMOVE NO. 2 DECK BOARD
    1. GTY777443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Strap
      Remove in this Direction

      Lift up the strap and remove the No. 2 deck board.

  12. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH
    1. Detach the claws and open the rope hook assembly caps.

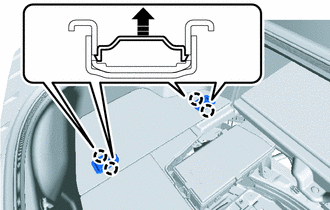

      GTY778631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Open in this Direction
    2. Remove the 2 bolts and 2 rope hook assemblies.
      GTY801847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Pull the entire luggage compartment trim cover LH to the rear while bending inward (in the direction of the arrow) to remove it.
      GTY833381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place hand here
      Remove in this Direction
  13. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH
    1. GTY831908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Strap
      Remove in this Direction

      Detach the claw and lift up the strap, remove the luggage compartment trim cover RH.

  14. REMOVE SIDE TRIM BOX
    1. GTY783169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Open in this Direction

      Detach the claws and open the rope hook assembly cap.

    2. Remove the bolt and rope hook assembly.
      GTY801844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the claw and clips.

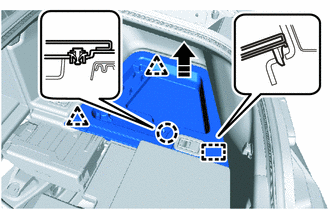

      GTY785191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    4. Detach the guide and remove the side trim box.
  15. REMOVE REAR FLOOR FINISH PLATE
    1. Using a clip remover, remove the 3 clips.
      GTY786811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the clips and guides and remove the rear floor finish plate.
      GTY821535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  16. REMOVE LUGGAGE COMPARTMENT TRIM BOX
    1. Remove the luggage compartment trim box as shown in the illustration.
      GTY805175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  17. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  18. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER
    1. Remove the 2 clips.
      GTY786538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Push the lever and remove the rope hook.

      HINT:

      Use the same procedure for the opposite side.

      GTY830748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Push
      Remove in this Direction
    3. Remove the 2 clips.
      GTY786540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Detach the guides as shown in the illustration.

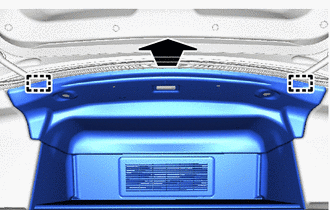

      GTY833199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

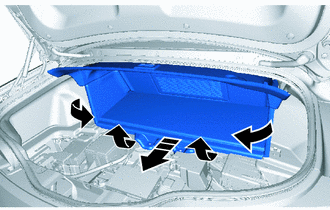

    5. GTY809952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      Remove the entire front luggage compartment trim cover while bending it inward (in the direction of the arrow).

  19. REMOVE INNER LUGGAGE COMPARTMENT TRIM COVER LH
    1. GTY794306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 4 clips.

    2. Remove the entire inner luggage compartment trim cover LH while bending it inward (in the direction of the arrow).
      GTY838420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  20. REMOVE INNER LUGGAGE COMPARTMENT TRIM COVER RH
    1. GTY776183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Open in this Direction

      Detach the claws and open the rope hook assembly cap.

    2. Remove the bolt and rope hook assembly.
      GTY833112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. GTY794307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 4 clips and inner luggage compartment trim cover RH.

  21. REMOVE NO. 4 LUGGAGE ROOM WIRE
    1. Detach the clamps.
      GTY797973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the claws to the grommet.
    3. Detach the claws and remove the wire harness grommet from the vehicle body.
      GTY824201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Detach the clamps and remove the No. 4 luggage room wire.
      GTY794261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disconnect the connector.
  22. REMOVE SATELLITE RADIO ANTENNA ASSEMBLY

    Refer to PROCEDURE - Step 4

  23. REMOVE NO. 6 ANTENNA CORD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16
