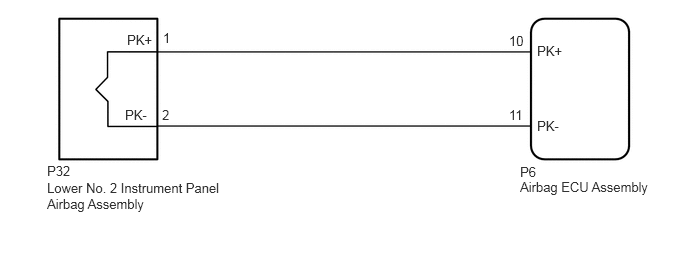

DTC B1865/65: Short in Front Passenger Side Knee Airbag Squib Circuit; DTC B1866/65: Open in Front Passenger Side Knee Airbag Squib Circuit; DTC B1867/65: Short to GND in Front Passenger Side Knee Airbag Squib Circuit; DTC B1868/65: Short to B+ in Front Passenger Side Knee Airbag Squib Circuit [03/2017 - 04/2020]: Wiring Diagram
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.
