Installation [03/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL ROOF DRIP SIDE FINISH MOULDING LH

HINT:

Install 5 new No. 1 windshield outside moulding clips to the vehicle side.

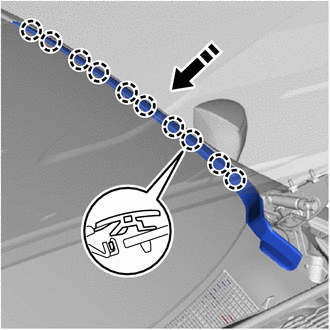

Attach the claws and install a new roof drip side finish moulding LH as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

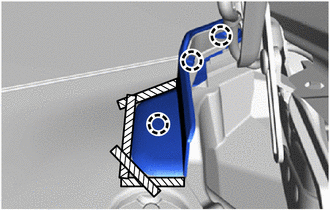

Attach the claws.

Remove the protective tape.
