Installation [03/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL REAR ROOF SIDE GARNISH SUB-ASSEMBLY LH

    HINT:

    Install 11 new No. 1 outside moulding retainers to the vehicle side.

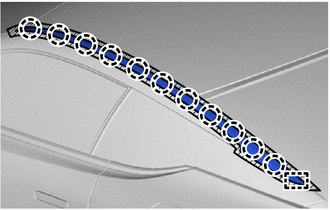

    1. Attach the claws and pin and install the rear roof side garnish sub-assembly LH.
      GTY803564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Remove the protective tape.
  2. INSTALL ROOF DRIP SIDE FINISH MOULDING LH

    Refer to INSTALLATION [03/2017 - ]
