Reassembly [03/2017 - 06/2019]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL REAR BUMPER PAD

    HINT:

    When installing the rear bumper pad, heat the body rocker panel moulding assembly LH.

    Standard

    Item Temperature
    Body Rocker Panel Moulding Assembly LH 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    1. Clean the rear bumper pad installation surface with a non-residue solvent.
    2. Remove the peeling paper on a new rear bumper pad while making sure not to touch the adhesional surface.

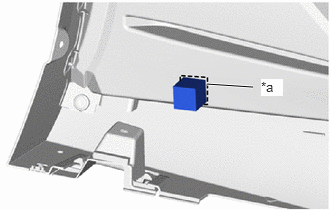

    3. Install the rear bumper pad in the position shown in the illustration.
      GTY784094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Mark-off Line
      NOTE:

      Press the rear bumper pad firmly to install it.

  2. INSTALL NO. 2 SIDE MUDGUARD PROTECTOR

    HINT:

    When installing the No. 2 side mudguard protector, heat the body rocker panel moulding assembly LH.

    Standard

    Item Temperature
    Body Rocker Panel Moulding Assembly LH 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    1. Clean the No. 2 side mudguard protector installation surface with a non-residue solvent.
    2. Remove the peeling paper on a new No. 2 side mudguard protector while making sure not to touch the adhesional surface.
    3. Align the 2 No. 2 side mudguard protectors to the end of vehicle front side rib and install it.

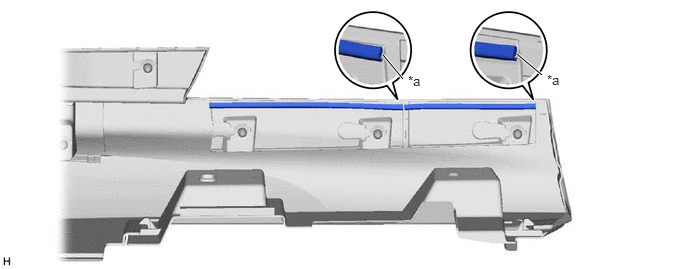

      1. for Front Side:
        GTY812002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Rib - -

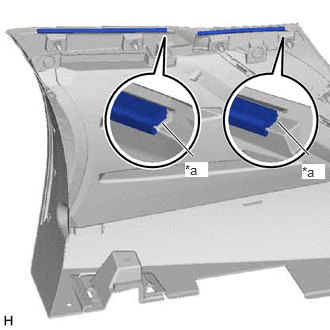

      2. for Rear Side:
        GTY799978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Rib
  3. INSTALL NO. 6 ROCKER PANEL MOULDING PROTECTOR

    HINT:

    When installing the No. 6 rocker panel moulding protector, heat the body rocker panel moulding assembly LH.

    Standard

    Item Temperature
    Body Rocker Panel Moulding Assembly LH 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    1. Clean the No. 6 rocker panel moulding protector installation surface with a non-residue solvent.
    2. Remove the peeling paper on a new No. 6 rocker panel moulding protector while making sure not to touch the adhesional surface.

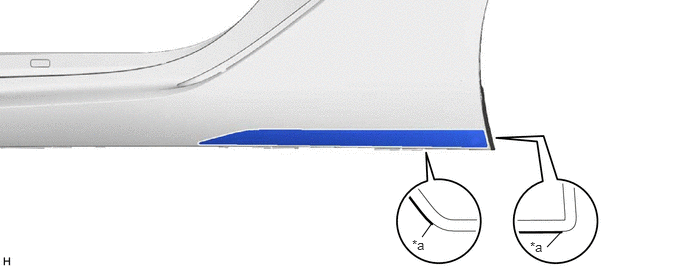

    3. Install the No. 6 rocker panel moulding protector in the position shown in the illustration.
      GTY815723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a R End - -
      NOTE:

      Press the rear bumper pad firmly to install it.

  4. INSTALL NO. 2 ROCKER PANEL MOULDING PROTECTOR

    HINT:

    When installing the No. 2 rocker panel moulding protector, heat the body rocker panel moulding assembly LH.

    Standard

    Item Temperature
    Body Rocker Panel Moulding Assembly LH 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    1. Clean the No. 2 rocker panel moulding protector installation surface with a non-residue solvent.
    2. Remove the peeling paper on a new No. 2 rocker panel moulding protector while making sure not to touch the adhesional surface.

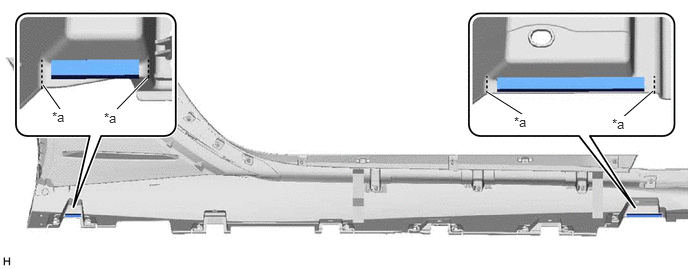

    3. Install the 2 No. 2 rocker panel moulding protectors in the position shown in the illustration.
      GTY830467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Mark-off Line - -
  5. INSTALL NO. 1 ROCKER PANEL MOULDING PROTECTOR

    HINT:

    When installing the No. 1 rocker panel moulding protector, heat the body rocker panel moulding assembly LH.

    Standard

    Item Temperature
    Body Rocker Panel Moulding Assembly LH 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    1. Clean the No. 1 rocker panel moulding protector installation surface with a non-residue solvent.
    2. Remove the peeling paper on a new No. 1 rocker panel moulding protector while making sure not to touch the adhesional surface.

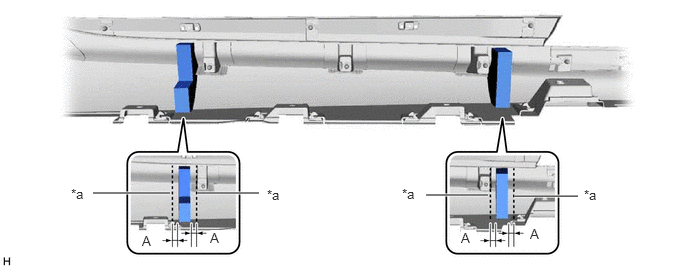

    3. Install the 2 No. 1 rocker panel moulding protectors in the position shown in the illustration.
      GTY834336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Mark-off Line - -
      STANDARD:

      Area Specified Condition Area Specified Condition
      A 10 mm (0.394 in.) - -
      NOTE:

      Press the rear bumper pad firmly to install it.
