Installation [06/2019 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL BODY ROCKER PANEL MOULDING ASSEMBLY LH

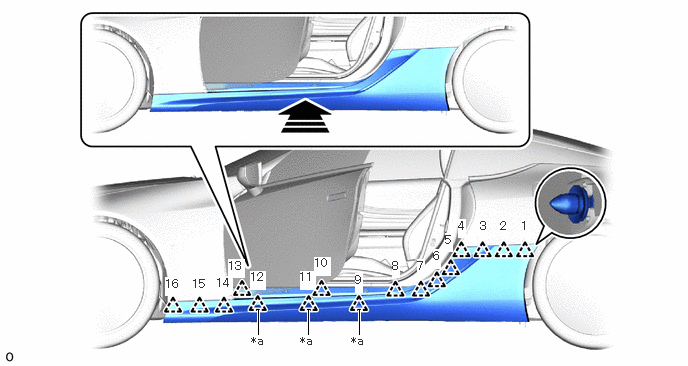

    1. Attach the clips going from the rear of the vehicle in the order shown in the illustration.
      GTY951519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clip (Red) - -
      Install in this Direction - -

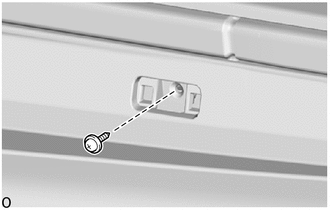

    2. Install the screw.
      GTY800110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the other side.

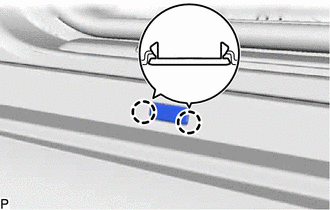

    3. Attach the claws and install the rocker panel moulding end cover.
      GTY509333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the other side.

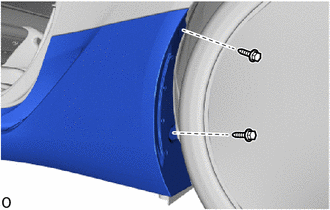

    4. Install the 2 screws.
      GTY779734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

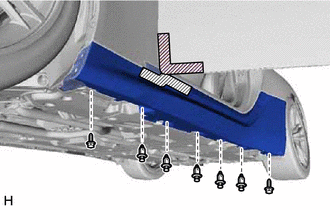

    5. Install the 2 screws and 5 clips.
      GTY780038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

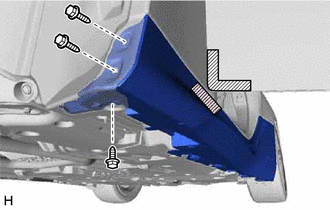

    6. Install the body rocker panel moulding assembly LH with the 3 screws.
      GTY780037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the protective tape.
  2. INSTALL FRONT REAR WHEEL HOUSE PLATE LH

    See step  1
