Disassembly [03/2017 - 06/2019]: Procedure
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE NO. 1 ROCKER PANEL MOULDING PROTECTOR
HINT:
When removing the No. 1 rocker panel moulding protector, heat the body rocker panel moulding assembly LH and No. 1 rocker panel moulding protector using a heat light.
Standard
| Item |
Temperature |
| Body Rocker Panel Moulding Assembly LH |
20 to 30°C (68 to 86°F) |
| No. 1 Rocker Panel Moulding Protector |
WARNING:
- Do not touch the heat light and heated parts.
- Touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *a |
Heated Part |
| *b |
Heat Light |

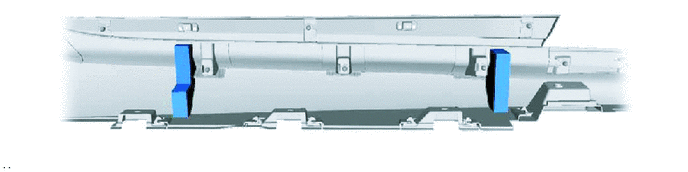

- Remove the 2 No. 1 rocker panel moulding protectors.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE NO. 2 ROCKER PANEL MOULDING PROTECTOR
HINT:
When removing the No. 2 rocker panel moulding protector, heat the body rocker panel moulding assembly LH and No. 2 rocker panel moulding protector using a heat light.
Standard
| Item |
Temperature |
| Body Rocker Panel Moulding Assembly LH |
20 to 30°C (68 to 86°F) |
| No. 2 Rocker Panel Moulding Protector |
WARNING:
- Do not touch the heat light and heated parts.
- Touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *a |
Heated Part |
| *b |
Heat Light |

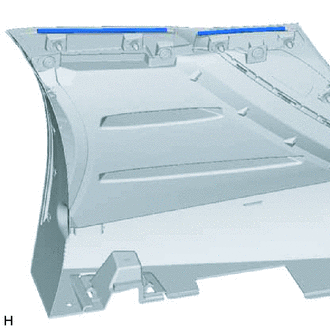

- Remove the 2 No. 2 rocker panel moulding protectors.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE NO. 6 ROCKER PANEL MOULDING PROTECTOR
HINT:
When removing the No. 6 rocker panel moulding protector, heat the body rocker panel moulding assembly LH and No. 6 rocker panel moulding protector using a heat light.
Standard
| Item |
Temperature |
| Body Rocker Panel Moulding Assembly LH |
20 to 30°C (68 to 86°F) |
| No. 6 Rocker Panel Moulding Protector |
WARNING:
- Do not touch the heat light and heated parts.
- Touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *a |
Heated Part |
| *b |
Heat Light |

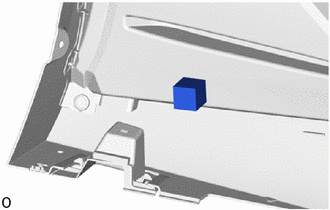

- Remove the No. 6 rocker panel moulding protector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE NO. 2 SIDE MUDGUARD PROTECTOR
HINT:
When removing the No. 2 side moulding protector, heat the body rocker panel moulding assembly LH and No. 2 side moulding protector using a heat light.
Standard
| Item |
Temperature |
| Body Rocker Panel Moulding Assembly LH |
20 to 30°C (68 to 86°F) |
| No. 2 Side Moulding Protector |
WARNING:
- Do not touch the heat light and heated parts.
- Touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *a |
Heated Part |
| *b |
Heat Light |
- for Front Side:

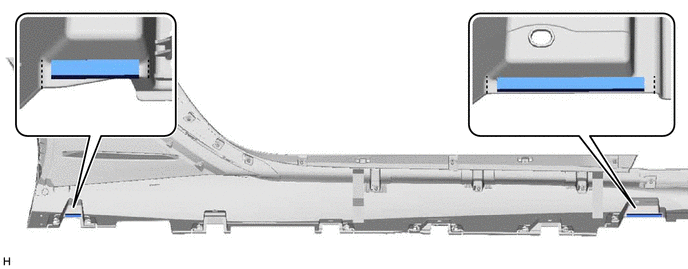

- Remove the 2 No. 2 side moulding protectors.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- for Rear Side:

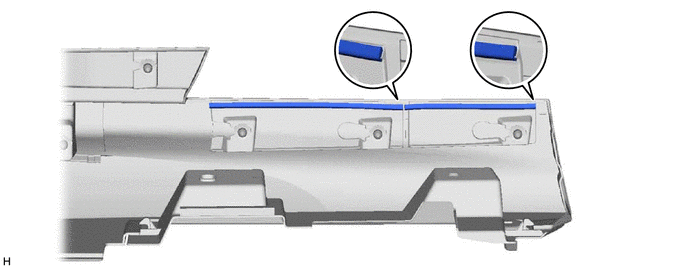

- Remove the 2 No. 2 side moulding protectors.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE REAR BUMPER PAD
HINT:
When removing the rear bumper pad, heat the body rocker panel moulding assembly LH and rear bumper pad using a heat light.
Standard
| Item |
Temperature |
| Body Rocker Panel Moulding Assembly LH |
20 to 30°C (68 to 86°F) |
| Rear Bumper Pad |
WARNING:
- Do not touch the heat light and heated parts.
- Touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *a |
Heated Part |
| *b |
Heat Light |

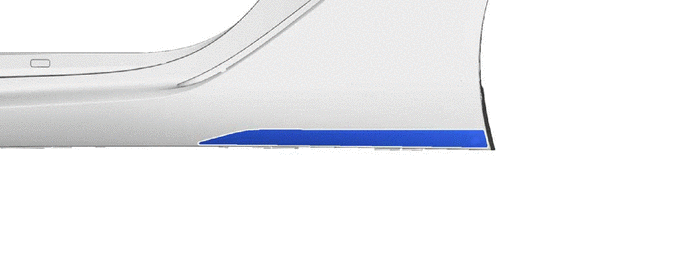

- Remove the rear bumper pad.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
