Reassembly [03/2017 - ]: Procedure

1. Using a T25 "TORX" socket wrench, install the rear spoiler motor assembly with the 3 "TORX" screws on the rear spoiler motor bracket.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

2. Install the spindle assembly with the 4 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 6.5 N.m (66 kgf/cm, 58 in.lbf)

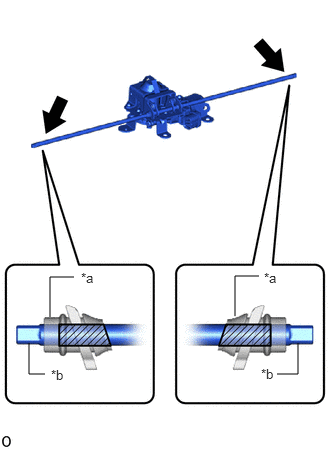

1. Apply body grease S to the entire circumference of the rod as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Boot
   *b	Rod
   	Body Grease S

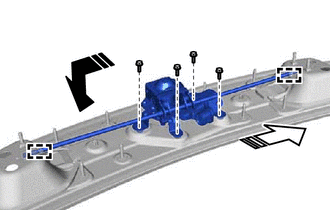

2. Insert the resr spoiler drive gear sub-assembly into the guide to the rear spoiler insert as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Install in this Direction (1)
   	Install in this Direction (2)

3. Install the rear spoiler drive gear sub-assembly with 4 new bolts.

   Torque: 6.7 N.m (68 kgf/cm, 59 in.lbf)

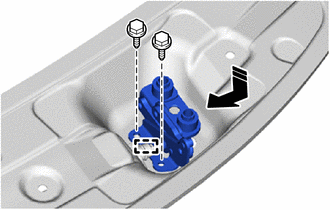

1. Insert the guide.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

2. Install the top cover lock control link sub-assembly LH with 2 new bolts.

   Torque: 6.7 N.m (68 kgf/cm, 59 in.lbf)

HINT:

Use the same procedure described for the LH side.

1. Connect the connector and install the connector wire.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Attach the clamp.

HINT:

When installing the rear spoiler cover, heat the rear spoiler cover and rear spoiler insert using a heat light.

Standard Value

WARNING:

• Do not touch the heat light and heated parts.
• Touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

1. When reusing the rear spoiler insert:
   1. Using a heat light, heat the rear spoiler insert surface.
   2. Remove any remaining double-sided tape from the rear spoiler insert.
   3. Wipe off any tape adhesive residue with cleaner.
      NOTE:

      • Installing the rear spoiler cover with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
      • Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
      • Also, clean a new rear spoiler insert surface.
2. Using a heat light, heat the rear spoiler insert and a new rear spoiler cover.
   NOTE:

   Do not heat the rear spoiler cover and rear spoiler insert excessively.

3. Remove the release paper from the rear spoiler cover.
   NOTE:

   After removing the peeling paper, do not touch the surface of the tape with your fingers or cotton work gloves.

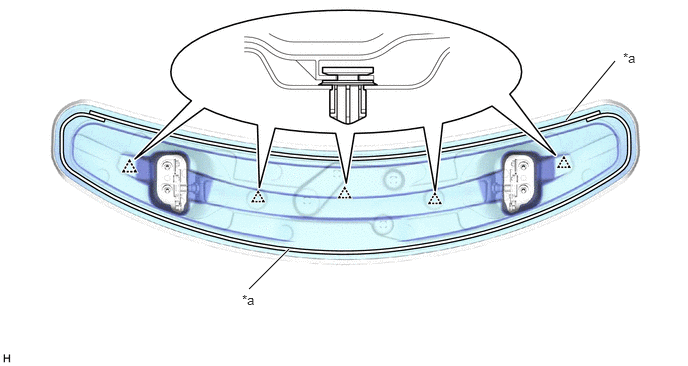

4. Install the rear spoiler cover in the position shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Double-sided Tape

   -

   -

   NOTE:

   The application strength of the rear spoiler cover will weaken if reapplied. If reapplication is necessary, be sure to replace it with a new one.

   HINT:

   Apply pressure so that it does not lift up from the rear spoiler insert.

1. Attach the claws and install the rear spoiler cover LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedure described for the LH side.

HINT:

When installing the rear spoiler No. 12 protector LH, heat the rear spoiler No. 12 protector LH and rear spoiler sub-assembly using a heat light.

Standard Value

WARNING:

• Do not touch the heat light and heated parts.
• Touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

1. When reusing the rear spoiler sub-assembly:
   1. Using a heat light, heat the rear spoiler sub-assembly surface.
   2. Remove any remaining double-sided tape from the rear spoiler sub-assembly.
   3. Wipe off any tape adhesive residue with cleaner.
      NOTE:

      • Installing the rear spoiler No. 12 protector LH with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
      • Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
      • Also, clean a new rear spoiler sub-assembly surface.
2. Apply primer to the rear spoiler sub-assembly on the installation area of the rear spoiler No. 12 protector LH using a brush or felt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Primer

   NOTE:

   • Replace the brush or felt if it is dirty or has become hardened.
   • Keep any painted surface free from primer.
   • If the primer contacts a painted surface, it may leave light primer marks. Therefore, use protective tape when using liquid primer.
   • Do not touch surfaces to which primer has been applied until the rear spoiler No. 12 protector LH has been attached.
3. Let the primer dry sufficiently.
   NOTE:

   Do not touch applied surfaces until the primer is dry.

   Recommended drying time

   10 minutes or more (at 23°C (73°F))

4. Using a heat light, heat the rear spoiler sub-assembly and a new rear spoiler No. 12 protector LH.
   NOTE:

   Do not heat the rear spoiler No. 12 protector LH and rear spoiler sub-assembly excessively.

5. Remove the release paper from the rear spoiler No. 12 protector LH.
   NOTE:

   After removing the peeling paper, do not touch the surface of the tape with your fingers or cotton work gloves.

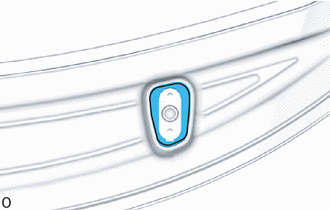

6. Install the rear spoiler No. 12 protector LH in the position shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   The application strength of the rear spoiler No. 12 protector LH will weaken if reapplied. If reapplication is necessary, be sure to replace it with a new one.

   HINT:

   Apply pressure so that it does not lift up from the rear spoiler sub-assembly.

HINT:

Use the same procedure described for the LH side.

HINT:

When installing the rear spoiler protector LH, heat the rear spoiler protector LH and rear spoiler sub-assembly using a heat light.

Standard Value

WARNING:

• Do not touch the heat light and heated parts.
• Touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

1. When reusing the rear spoiler sub-assembly:
   1. Using a heat light, heat the rear spoiler sub-assembly surface.
   2. Remove any remaining double-sided tape from the rear spoiler sub-assembly.
   3. Wipe off any tape adhesive residue with cleaner.
      NOTE:

      • Installing the rear spoiler protector LH with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
      • Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
      • Also, clean a new rear spoiler sub-assembly surface.

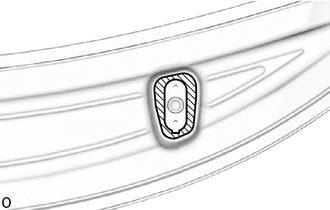

2. Apply primer to the rear spoiler sub-assembly on the installation area of the rear spoiler protector LH using a brush or felt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Primer

   NOTE:

   • Replace the brush or felt if it is dirty or has become hardened.
   • Keep any painted surface free from primer.
   • If the primer contacts a painted surface, it may leave light primer marks. Therefore, use protective tape when using liquid primer.
   • Do not touch surfaces to which primer has been applied until the rear spoiler protector LH has been attached.
3. Let the primer dry sufficiently.
   NOTE:

   Do not touch applied surfaces until the primer is dry.

   Recommended drying time

   10 minutes or more (at 23°C (73°F))

4. Using a heat light, heat the rear spoiler sub-assembly and a new rear spoiler protector LH.
   NOTE:

   Do not heat the rear spoiler protector LH and rear spoiler sub-assembly excessively.

5. Remove the release paper from the rear spoiler protector LH.
   NOTE:

   After removing the peeling paper, do not touch the surface of the tape with your fingers or cotton work gloves.

6. Install the rear spoiler protector LH in the position shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   The application strength of the rear spoiler protector LH will weaken if reapplied. If reapplication is necessary, be sure to replace it with a new one.

   HINT:

   Apply pressure so that it does not lift up from the rear spoiler sub-assembly.

HINT:

Use the same procedure described for the LH side.

1. Using a T30 "TORX" socket wrench, install the rear spoiler sub-assembly with 4 new "TORX" screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 5.1 N.m (52 kgf/cm, 45 in.lbf)
