System Diagram [05/2023 - ]

HINT:

Inspect the communication function by CAN communication system.

Refer to HOW TO PROCEED WITH TROUBLESHOOTING [05/2023 - ]

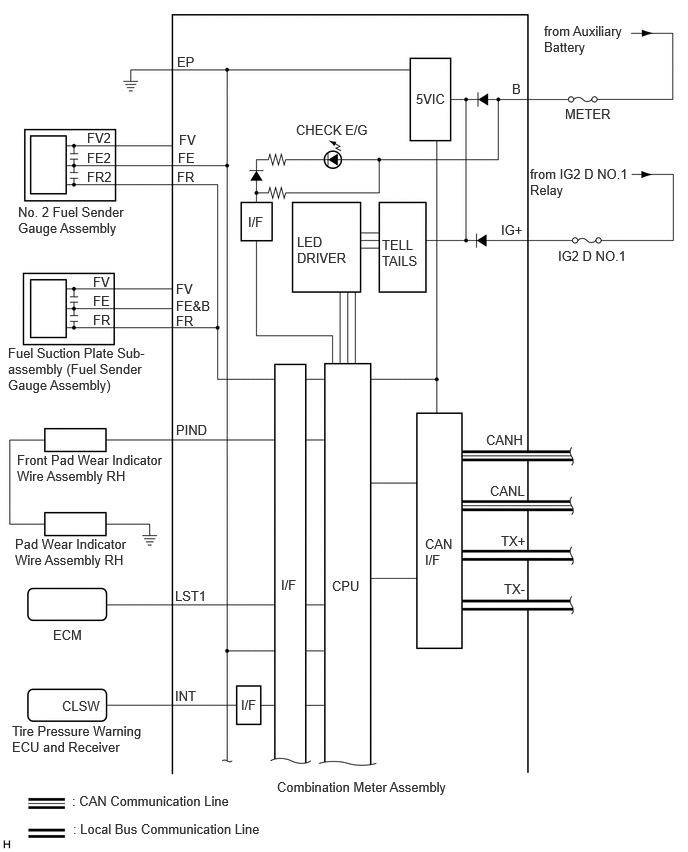

GTY1242295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

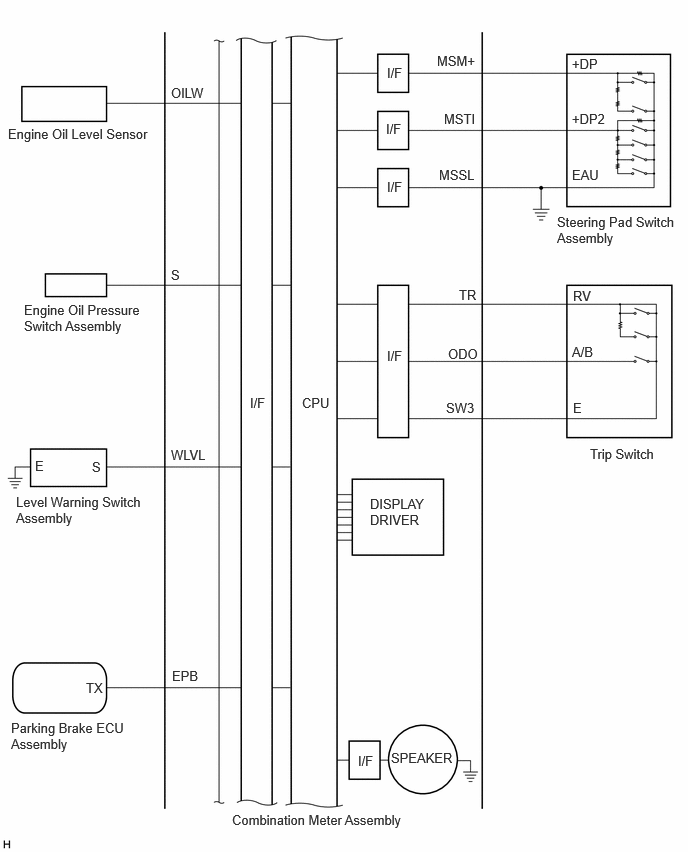

GTY1242603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

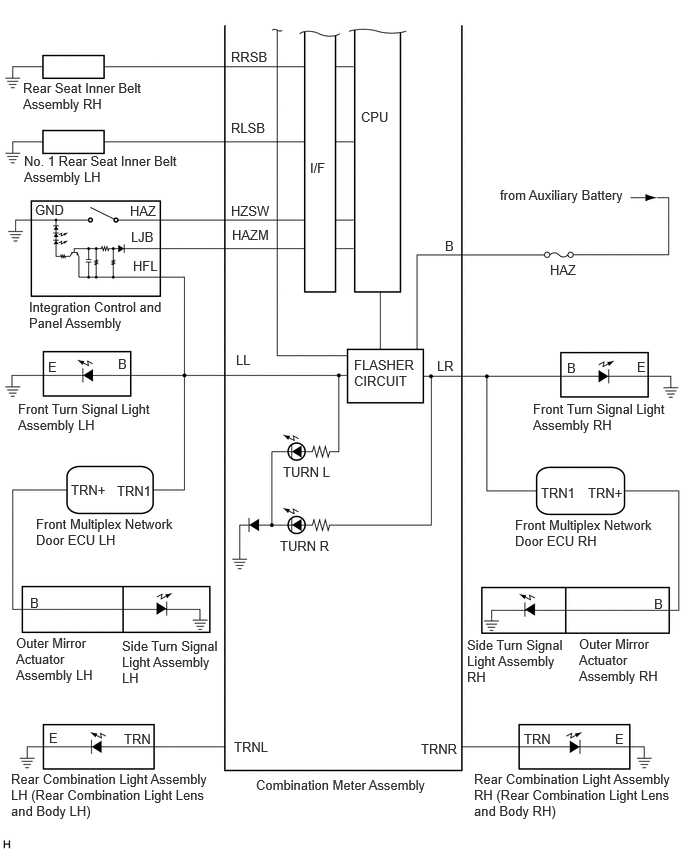

GTY1242043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

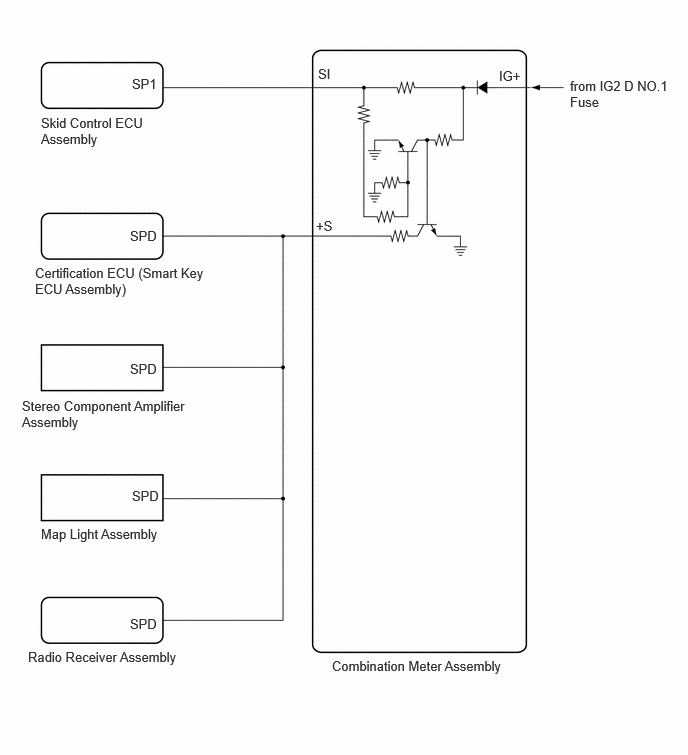

GTY1242993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
