Removal [07/2020 - 05/2023]: Procedure

  1. REMOVE WINDSHIELD OUTSIDE MOULDING LH

    Refer to REMOVAL [07/2020 - 05/2023]

  2. REMOVE FRONT ROOF SIDE RAIL WEATHERSTRIP LH

    Refer to REMOVAL [07/2020 - ]

  3. REMOVE FRONT ROOF SIDE RAIL WEATHERSTRIP RETAINER LH
    1. Remove the 5 screws.

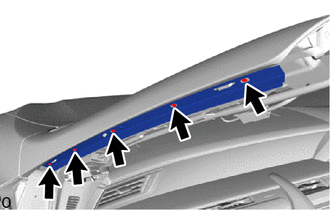

      GTY952244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the clip.

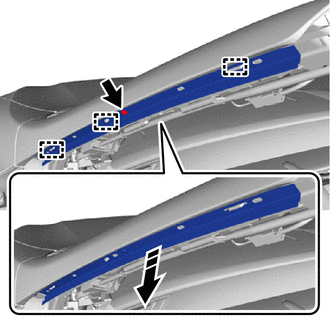

      GTY951750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    3. Detach the guide and remove the front roof side rail weatherstrip retainer LH.
  4. REMOVE ROOF SIDE RAIL GARNISH SUB-ASSEMBLY LH
    1. Apply protective tape around the roof side rail garnish sub-assembly LH.

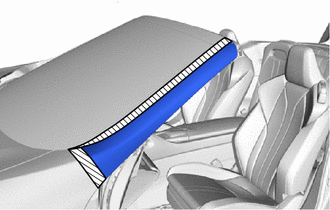

      GTY952065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Using a thin-bladed screwdriver with its tip wrapped with protective tape, detach the claw.

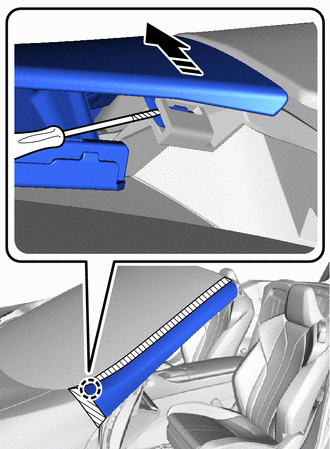

      GTY952831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
      Protective Tape
    3. Place your hand at the position in the illustration and pull in the direction indicated by the arrow to detach the pin and remove the roof side rail garnish sub-assembly LH in the order shown in the illustration.
      Fig 1: Roof Side Rail Garnish Sub-Assembly LH Removal Sequence

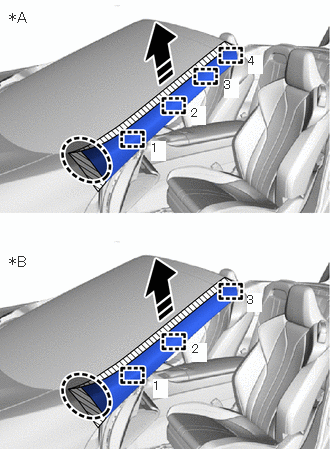

      GTY1085900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Type A
      *B for Type B
      Place Hand Here
      Remove in this Direction
