Components [07/2020 - ]

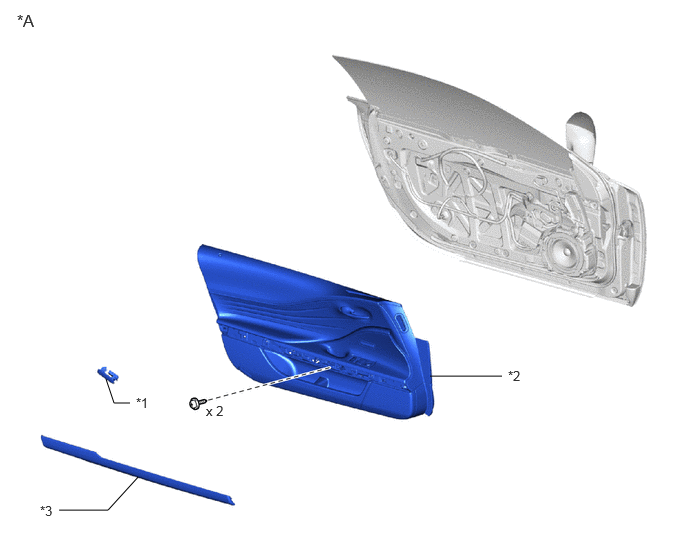

Fig 1: Front Door Belt Moulding Replacement Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Driver Side	-	-
*1	COURTESY LIGHT ASSEMBLY	*2	FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH
*3	FRONT DOOR TRIM COVER SUB-ASSEMBLY LH	-	-

Fig 2: Front Door Belt Moulding Replacement Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Front Passenger Side	-	-
*1	COURTESY LIGHT ASSEMBLY	*2	FRONT DOOR ASSIST GRIP ASSEMBLY RH
*3	FRONT DOOR TRIM BOARD SUB-ASSEMBLY RH	-	-

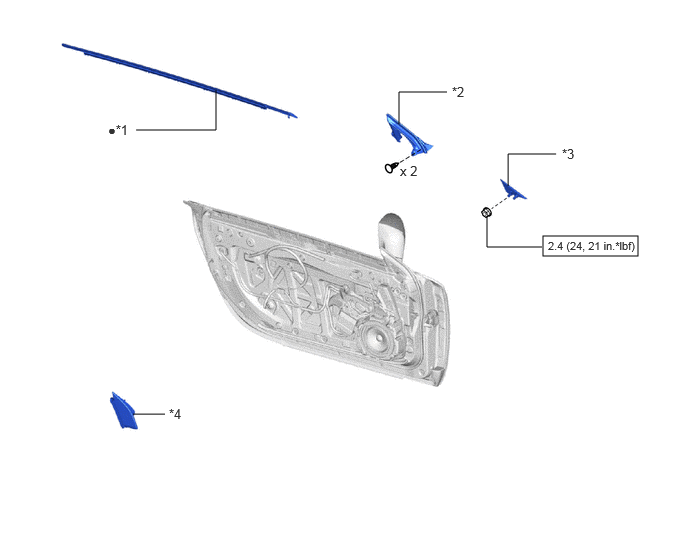

Fig 3: Front Door Belt Moulding Replacement Components With Torque Specifications (3 Of 3)

*1	FRONT DOOR BELT MOULDING ASSEMBLY LH	*2	FRONT DOOR DIVISION BAR SEAL LH
*3	FRONT DOOR FRONT LOWER FRAME UPPER COVER LH	*4	FRONT DOOR LOWER FRAME BRACKET GARNISH LH
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
