Components [07/2020 - ]

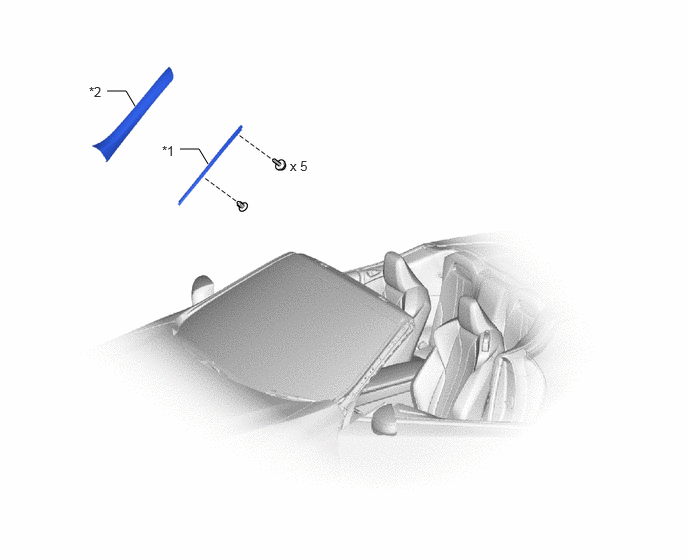

Fig 1: Roof Drip Side Moulding Replacement Components (1 Of 2)
GTY951885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT ROOF SIDE RAIL WEATHERSTRIP RETAINER LH *2 ROOF SIDE RAIL GARNISH SUB-ASSEMBLY LH
Fig 2: Roof Drip Side Moulding Replacement Components (2 Of 2)
GTY952344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ROOF DRIP SIDE FINISH MOULDING CLIP LH *2 RIVET
• Non-reusable part - -
